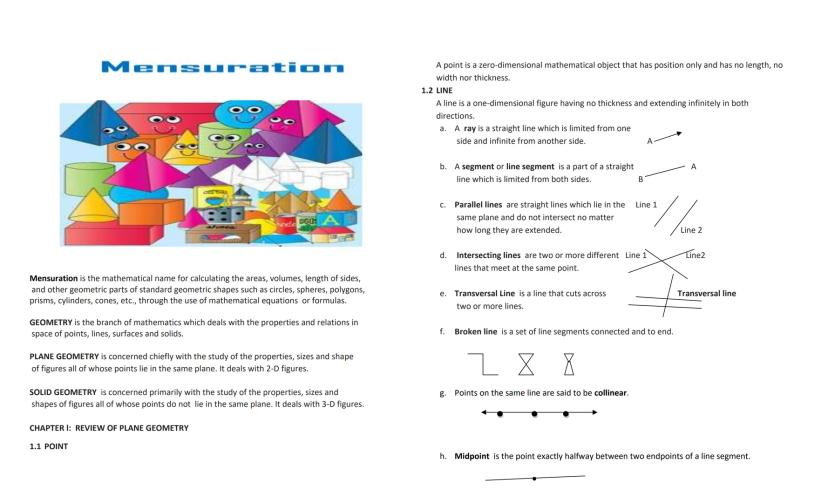

Basic Geometric Elements

Ever wonder how mathematicians describe the world around us? It all starts with points and lines! A point is simply a position with no size or dimensions - just a location in space.

Lines are one-dimensional figures that extend forever in both directions. They come in different forms: rays (extending infinitely from one point), line segments (limited on both sides), and parallel lines (never intersect no matter how far they extend).

When lines cross each other, they're called intersecting lines. A transversal line cuts across multiple lines, and a broken line is made of connected line segments. Points that sit on the same line are collinear.

💡 Quick Tip: When someone refers to "mensuration" in math class, they're talking about measuring geometric figures using formulas - not the other meaning of the word you might find in health class!

Geometry splits into two main branches: plane geometry (2D figures on a flat surface) and solid geometry (3D objects in space). Most of what you'll learn in middle and high school starts with plane geometry before moving to 3D.

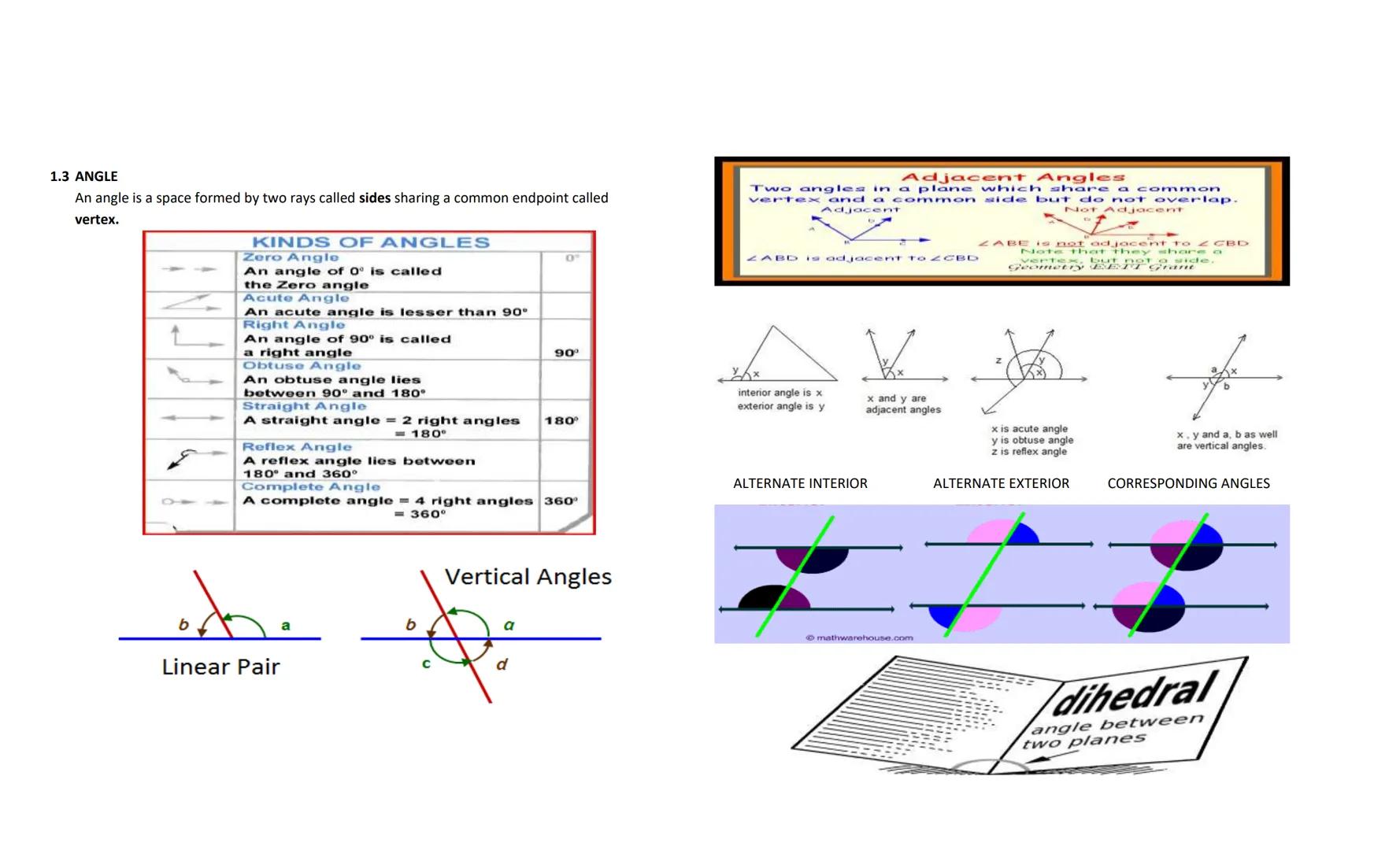

All About Angles

Angles are everywhere - from the corner of your notebook to the hands on a clock! An angle forms when two rays share a common endpoint (vertex). The size of an angle is measured in degrees (°).

There are several types of angles based on their measure:

• Zero angle: Exactly 0°
• Acute angle: Less than 90°
• Right angle: Exactly 90° (think of the corner of a piece of paper)
• Obtuse angle: Between 90° and 180°
• Straight angle: Exactly 180° (a straight line)
• Reflex angle: Between 180° and 360°
• Complete angle: Exactly 360° (a full circle)

When angles relate to each other, they form special pairs. Adjacent angles share a common vertex and side but don't overlap. Vertical angles are opposite angles formed when two lines intersect - they're always equal!

🔍 Angle Insight: When parallel lines are cut by a transversal, eight angles form. Some of these are equal to each other, like alternate interior angles and corresponding angles. This concept is super useful in geometry proofs!

Understanding these angle relationships will help you solve problems involving shapes, parallel lines, and even real-world situations like architecture and design.

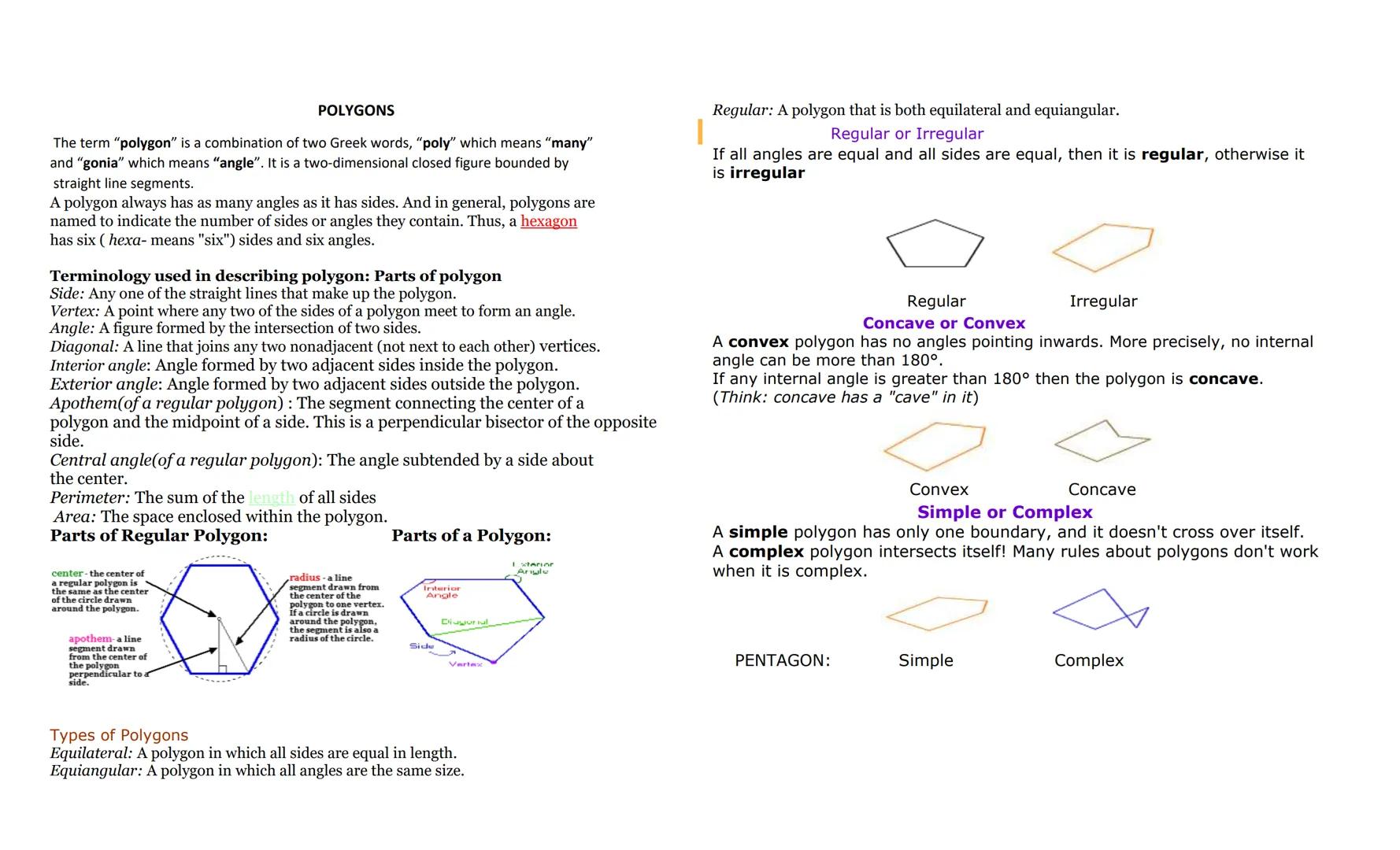

Exploring Polygons

Polygons are closed shapes made of straight line segments - from triangles to octagons and beyond! The word "polygon" comes from Greek, meaning "many angles." A six-sided shape (hexagon) has six angles too.

Every polygon has important parts:

• Sides: The straight lines forming the polygon
• Vertices: The points where sides meet
• Interior angles: Angles formed inside the polygon
• Exterior angles: Angles formed outside the polygon
• Diagonals: Lines connecting non-adjacent vertices

Polygons come in different types. A regular polygon has all equal sides and equal angles (like a stop sign). An irregular polygon has sides or angles of different measures.

🌟 Remember This: You can quickly find the sum of interior angles in any polygon using the formula $n-2$ × 180°, where n is the number of sides. For example, a pentagon (5 sides) has (5-2) × 180° = 540° total interior angle measure.

A convex polygon has all interior angles less than 180°, while a concave polygon has at least one interior angle greater than 180° (think of a shape with a "cave" in it). A simple polygon doesn't cross itself, while a complex polygon does.

Understanding these polygon classifications helps you analyze shapes in both math class and the real world around you!

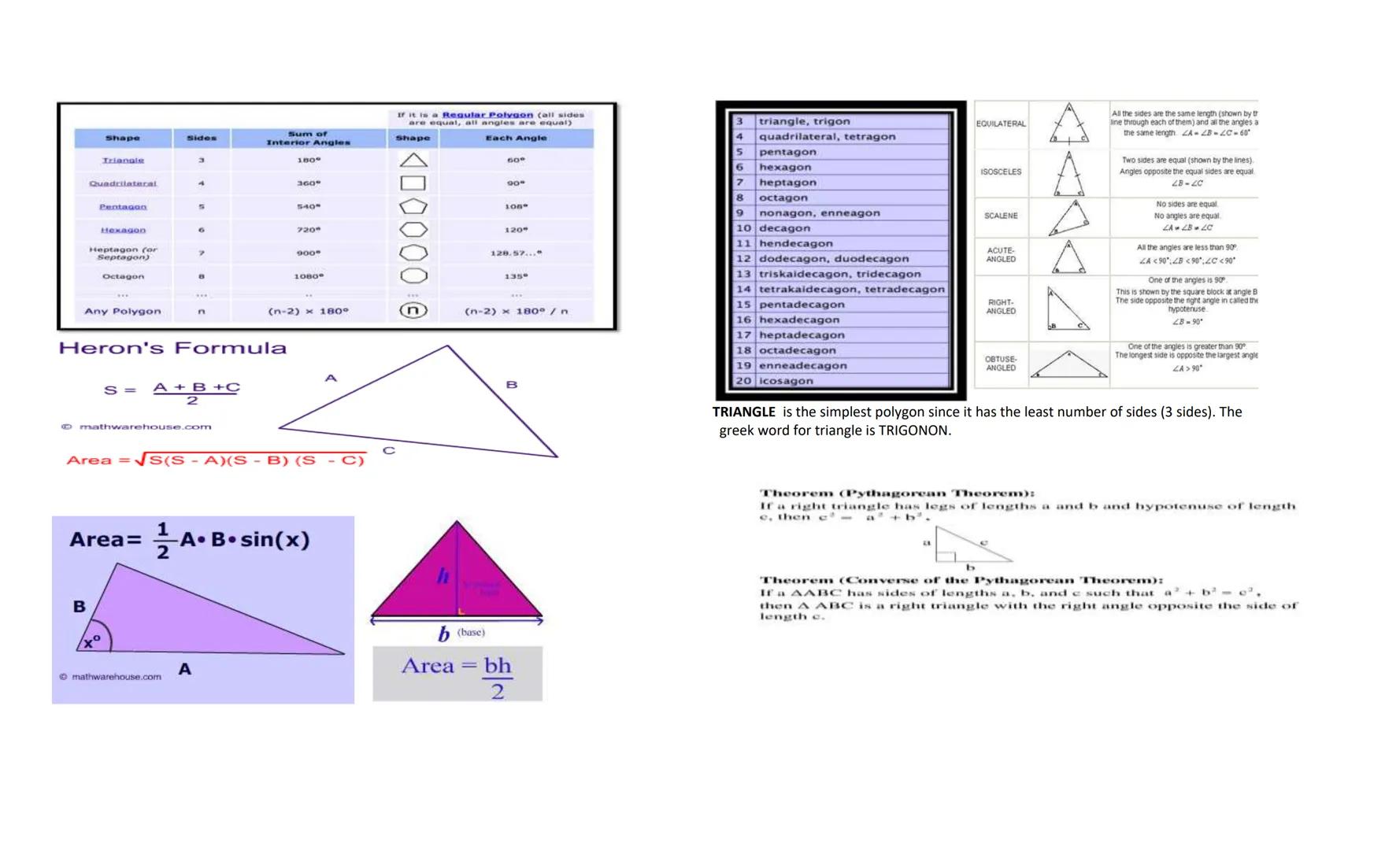

Triangles and Their Properties

Triangles are the simplest polygons with just three sides. They're incredibly important in geometry because any polygon can be broken down into triangles!

The angles in any triangle always add up to 180°. A regular polygon with n sides has each interior angle measuring $n-2$ × 180° ÷ n. For instance, each angle in a regular pentagon measures 108°.

Triangles can be classified by their sides:

• Equilateral: All three sides equal
• Isosceles: Two sides equal
• Scalene: No sides equal

Or by their angles:

• Acute-angled: All angles less than 90°
• Right-angled: One angle equals 90°
• Obtuse-angled: One angle greater than 90°

🔺 Triangle Power: The Pythagorean theorem $a² + b² = c²$ is one of the most useful formulas in math! It works for any right triangle, where a and b are the legs and c is the hypotenuse.

For area calculations, you have several options:

• Basic formula: Area = ½ × base × height
• Heron's formula when you know all three sides: Area = √$s(s-a)(s-b)(s-c)$, where s = $a+b+c$/2
• Trigonometric formula: Area = ½ × a × b × sin(C), where C is the angle between sides a and b

These triangle properties will help you solve problems not just in geometry, but in science, engineering, and construction too!

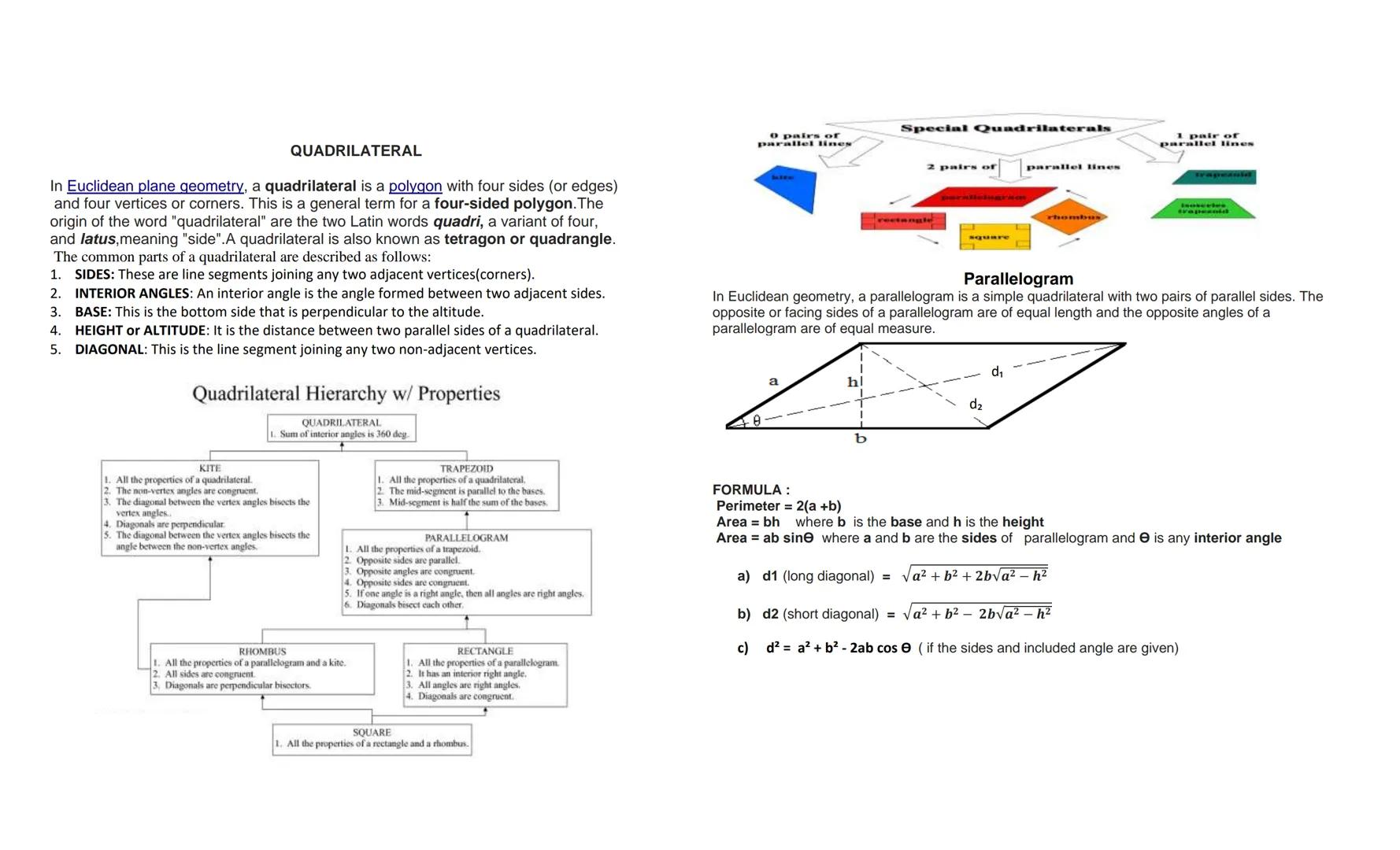

Quadrilaterals and Their Types

Quadrilaterals are four-sided polygons that surround us daily - from picture frames to computer screens! The word comes from Latin meaning "four sides." All quadrilaterals have a few things in common: four sides, four vertices, and interior angles that sum to 360°.

Quadrilaterals form a hierarchy based on their properties:

• Trapezoid: Has exactly one pair of parallel sides
• Parallelogram: Has two pairs of parallel sides with opposite sides equal
• Rectangle: A parallelogram with four right angles
• Rhombus: A parallelogram with all sides equal
• Square: A parallelogram with all sides equal and all angles equal to 90°
• Kite: Has two pairs of adjacent sides equal

Each quadrilateral has special properties. For example, in a parallelogram:

• Opposite sides are parallel and equal
• Opposite angles are equal
• Diagonals bisect each other

💎 Geometry Gem: A shape can have multiple classifications! A square is also a rectangle, a rhombus, a parallelogram, and a quadrilateral - just like how a dog is also a mammal and an animal.

For finding areas:

• Parallelogram: Area = base × height
• Rhombus: Area = ½ × d₁ × d₂ (product of diagonals)
• Kite: Area = ½ × d₁ × d₂ (product of diagonals)

These quadrilateral properties are essential for solving problems in architecture, design, and engineering!

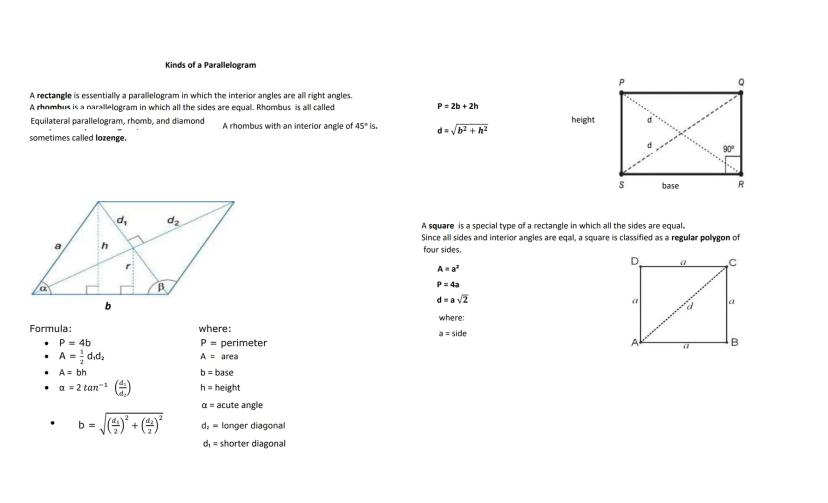

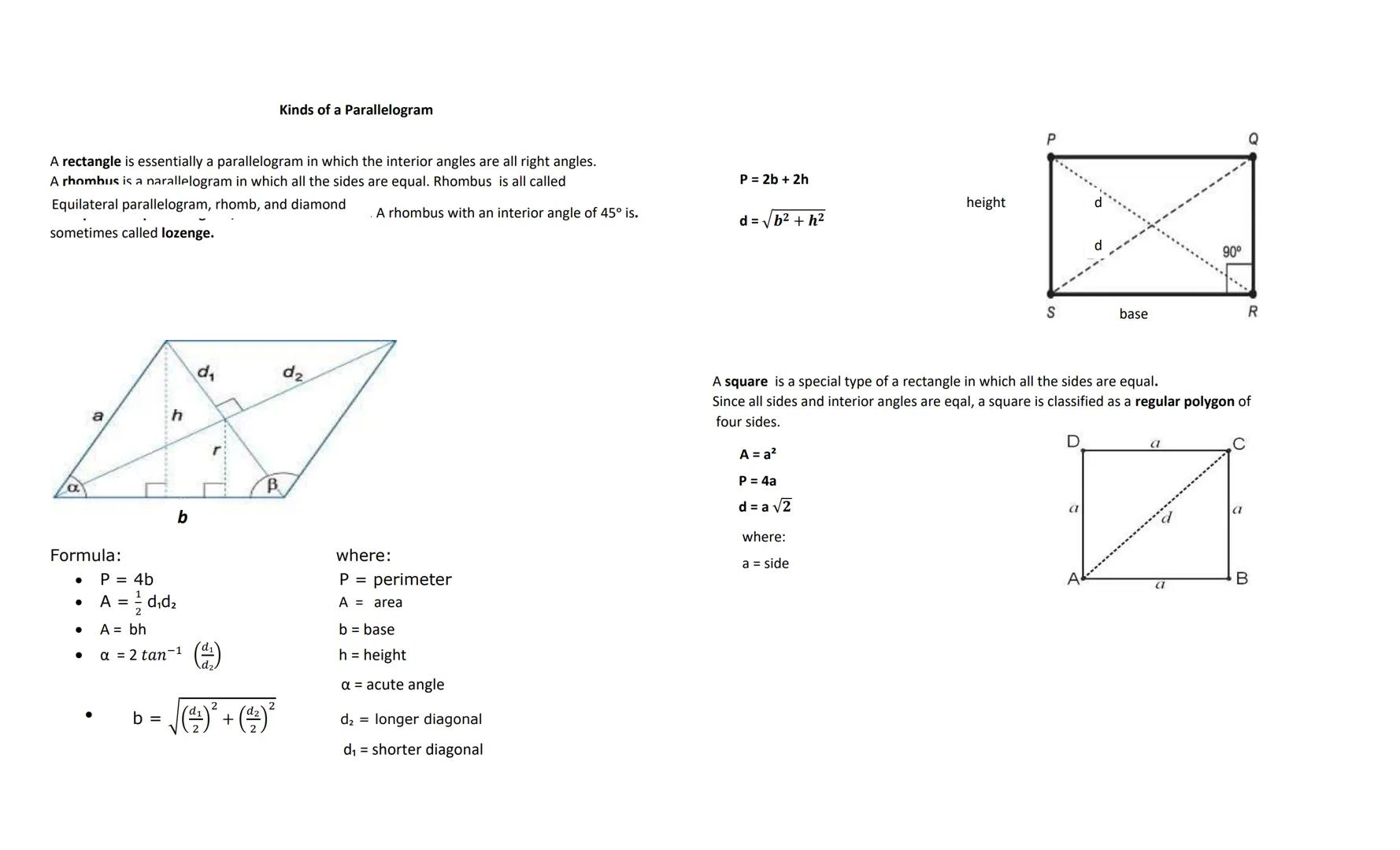

Special Parallelograms

Let's focus on three special types of parallelograms you'll use constantly in geometry: rectangles, rhombuses, and squares!

A rectangle is a parallelogram with four right angles. Think of your phone screen, a TV, or a notebook - they're all rectangles. Finding the perimeter of a rectangle is simple: P = 2$length + width$, or P = 2b + 2h as shown in the diagram.

The rhombus (sometimes called a diamond) is a parallelogram with four equal sides. What makes rhombuses special is that their diagonals always intersect at right angles and bisect each other. This gives us an easy area formula: A = ½ × d₁ × d₂, where d₁ and d₂ are the diagonals.

🧠 Math Hack: The diagonals of a rhombus divide it into four equal triangles. This is why the area formula uses half the product of the diagonals!

The square combines the best of both worlds - it's both a rectangle and a rhombus! With four equal sides and four right angles, it's the most symmetric quadrilateral. The area of a square is simply A = side², and its diagonal is d = side × √2.

These special parallelograms appear everywhere in daily life, from floor tiles (squares) to playing cards (rectangles) to diamond-shaped signs on the road. Recognizing their properties will help you solve real-world measurement problems quickly!
