Thermodynamics and the Ideal Gas Law: Key Concepts Simplified

Elizabeth Gabante@elizabethgabante_mpdt

Add to Google sources

Thermal physics deals with the relationship between heat, temperature, and...

1 / 3

of 3

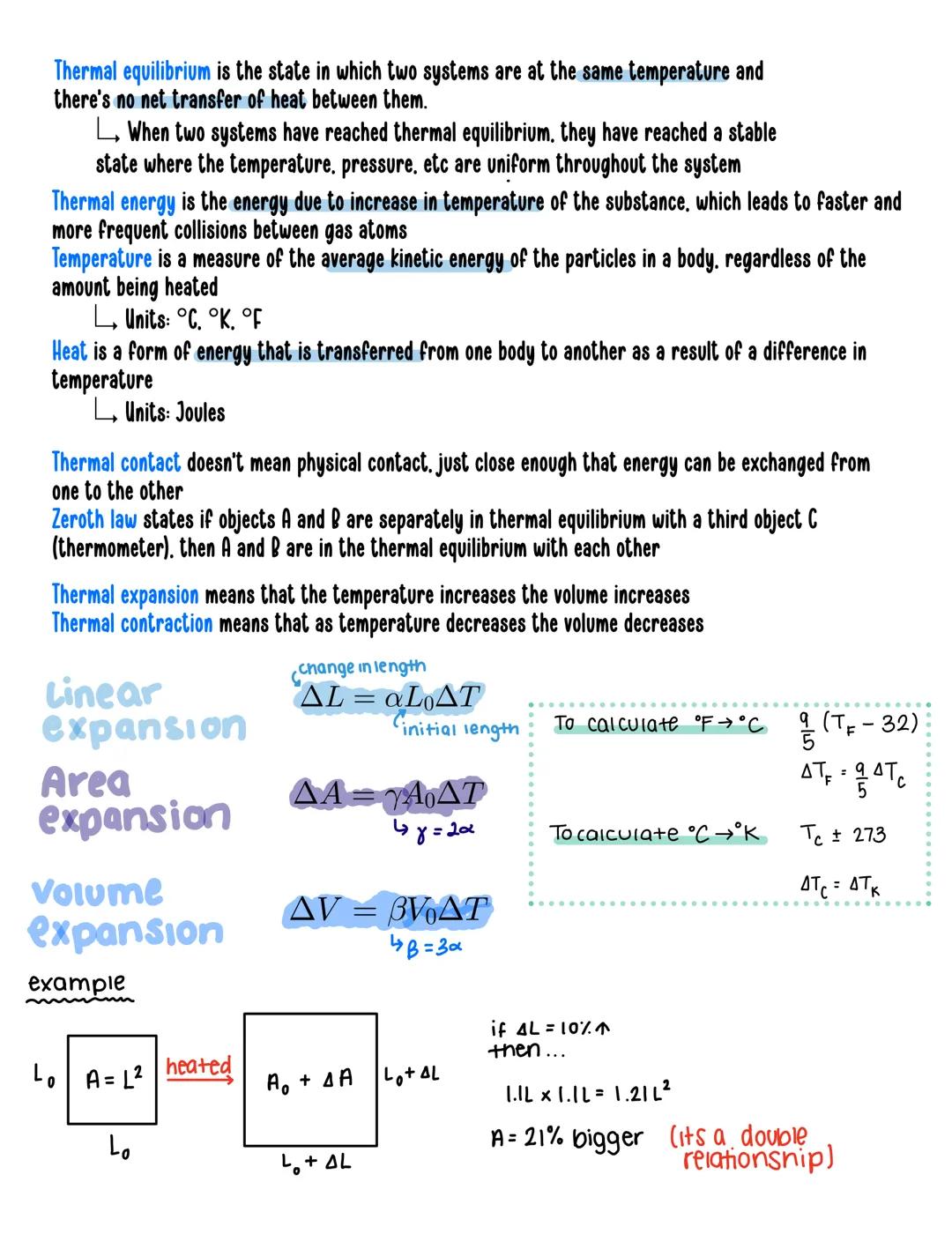

Thermal equilibrium is the state in which two systems are at the same temperature and
there's no net transfer of heat between them.
When two

Thermal Equilibrium & Expansion

When two objects reach the same temperature with no heat transferring between them, they've achieved thermal equilibrium. This stable state means temperature and pressure are uniform throughout both systems.

Temperature measures the average kinetic energy of particles, while heat is energy transferred between bodies due to temperature differences. Remember that thermal contact doesn't require physical touching—objects just need to be close enough to exchange energy. The Zeroth Law tells us that if objects A and B are each in thermal equilibrium with object C, then A and B are also in equilibrium with each other.

Materials typically expand when heated and contract when cooled. For linear expansion, we use $\Delta L = \alpha L_0 \Delta T$ , where α is the coefficient of linear expansion. Area expansion follows $\Delta A = \gamma A_0 \Delta T$ $where $\gamma = 2\alpha$$ , and volume expansion follows $\Delta V = \beta V_0 \Delta T$ $where $\beta = 3\alpha$$ .

Pro Tip: When converting between temperature scales, remember that Celsius to Kelvin just requires adding 273, while Fahrenheit to Celsius uses $\frac{9}{5}(T_F - 32)$ .

of 3

Thermal Expansion Applications

Thermal expansion has important real-world applications that require precise calculations. When materials heat up, both containers and their contents expand, but often at different rates.

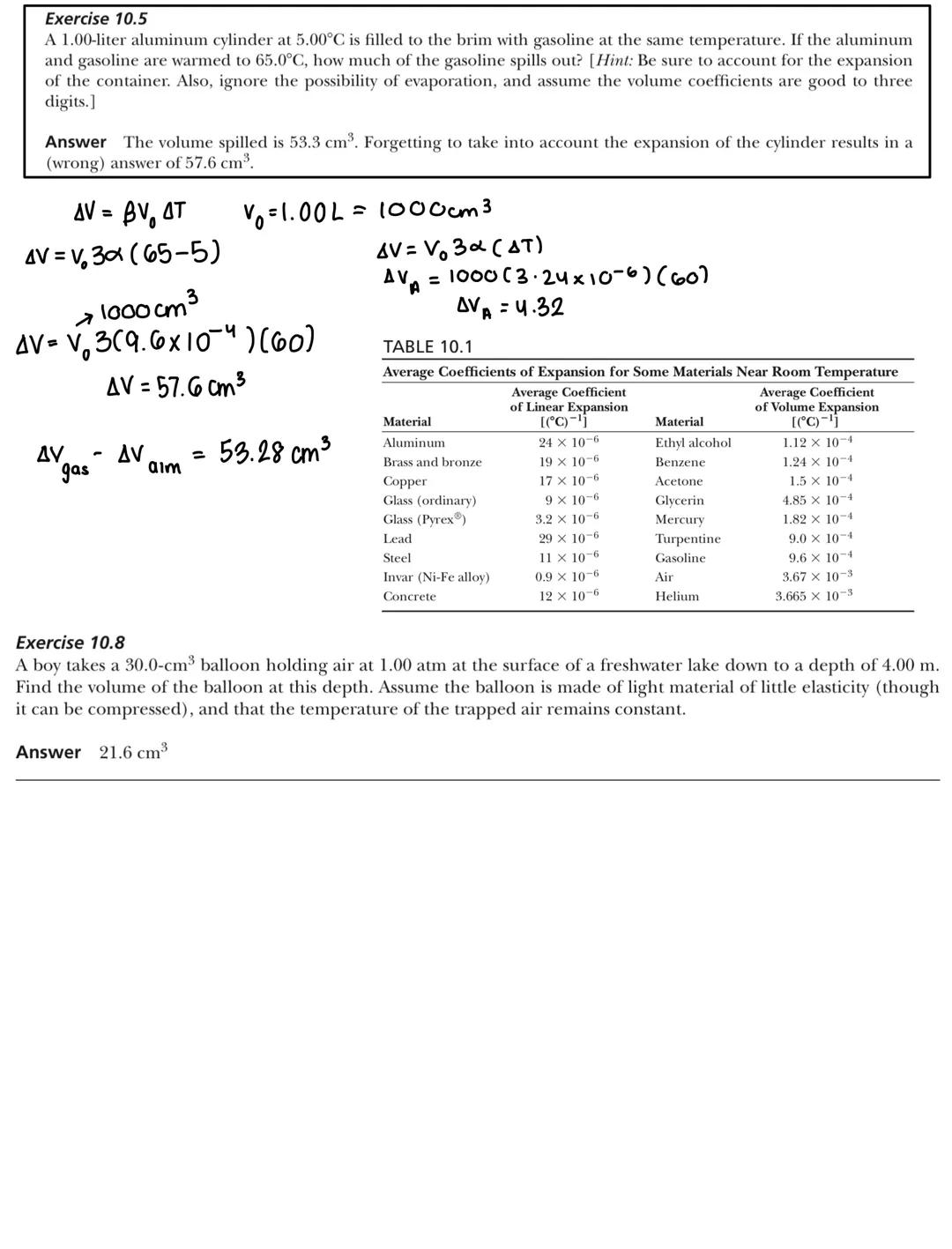

In the example of gasoline in an aluminum container, we need to account for both materials expanding. Gasoline expands significantly more than aluminum $with coefficients of $9.6 \times 10^{-4}/°C$ and $24 \times 10^{-6}/°C$ respectively$ . When calculating spills, we find the difference between the expansion of the liquid and the container.

Different materials expand at different rates. Metals like aluminum and lead have higher expansion coefficients than glass, which is why glass containers sometimes crack when hot liquids are poured into them. Liquids generally expand more than solids, with gasoline and turpentine having particularly high expansion rates.

Remember: When solving thermal expansion problems, always account for the expansion of both the container and its contents—failing to do so will give incorrect results!

of 3

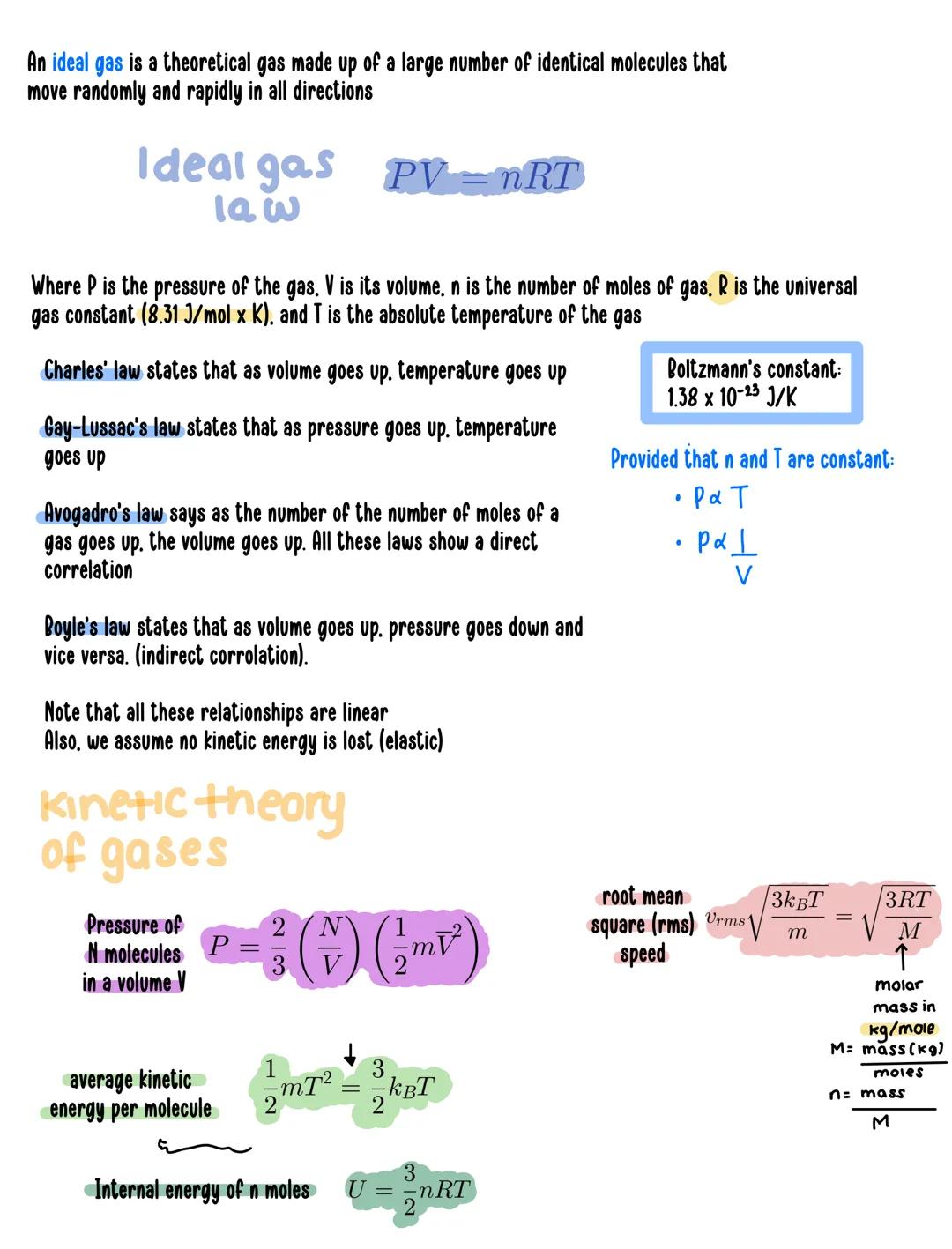

Ideal Gas Laws

An ideal gas is a theoretical model of randomly moving molecules that helps us understand gas behavior. The ideal gas law, $PV = nRT$ , connects pressure (P), volume (V), number of moles (n), temperature (T), and the universal gas constant $R = 8.31 J/mol×K$ .

Several related laws describe specific gas behaviors: Charles' law says volume increases with temperature, Gay-Lussac's law states pressure increases with temperature, and Avogadro's law says volume increases with the number of moles. Boyle's law shows the inverse relationship between pressure and volume—as one goes up, the other goes down.

The kinetic theory of gases helps explain these behaviors at the molecular level. The root mean square (rms) speed of gas molecules is given by $v_{rms} = \sqrt{\frac{3k_BT}{m}} = \sqrt{\frac{3RT}{M}}$ , where $k_B$ is Boltzmann's constant. The average kinetic energy per molecule is $\frac{1}{2}m\overline{v^2} = \frac{3}{2}k_BT$ .

Quick Check: The internal energy of an ideal gas depends only on temperature, not pressure or volume, and can be calculated as $U = \frac{3}{2}nRT$ for n moles of gas.
