Understanding Logic Circuits and Propositional Logic in Discrete Mathematics

eli gerszberg@eligerszberg_ebgh

Add to Google sources

Logic circuits and compound propositions are the building blocks of...

1 / 5

of 5

$# Logic Circuits P$\longrightarrow$ $\triangleright$$\longrightarrow$$\neg$P NOT gate (inverter) P$\longrightarrow$ $\longrightarrow$P$\v$

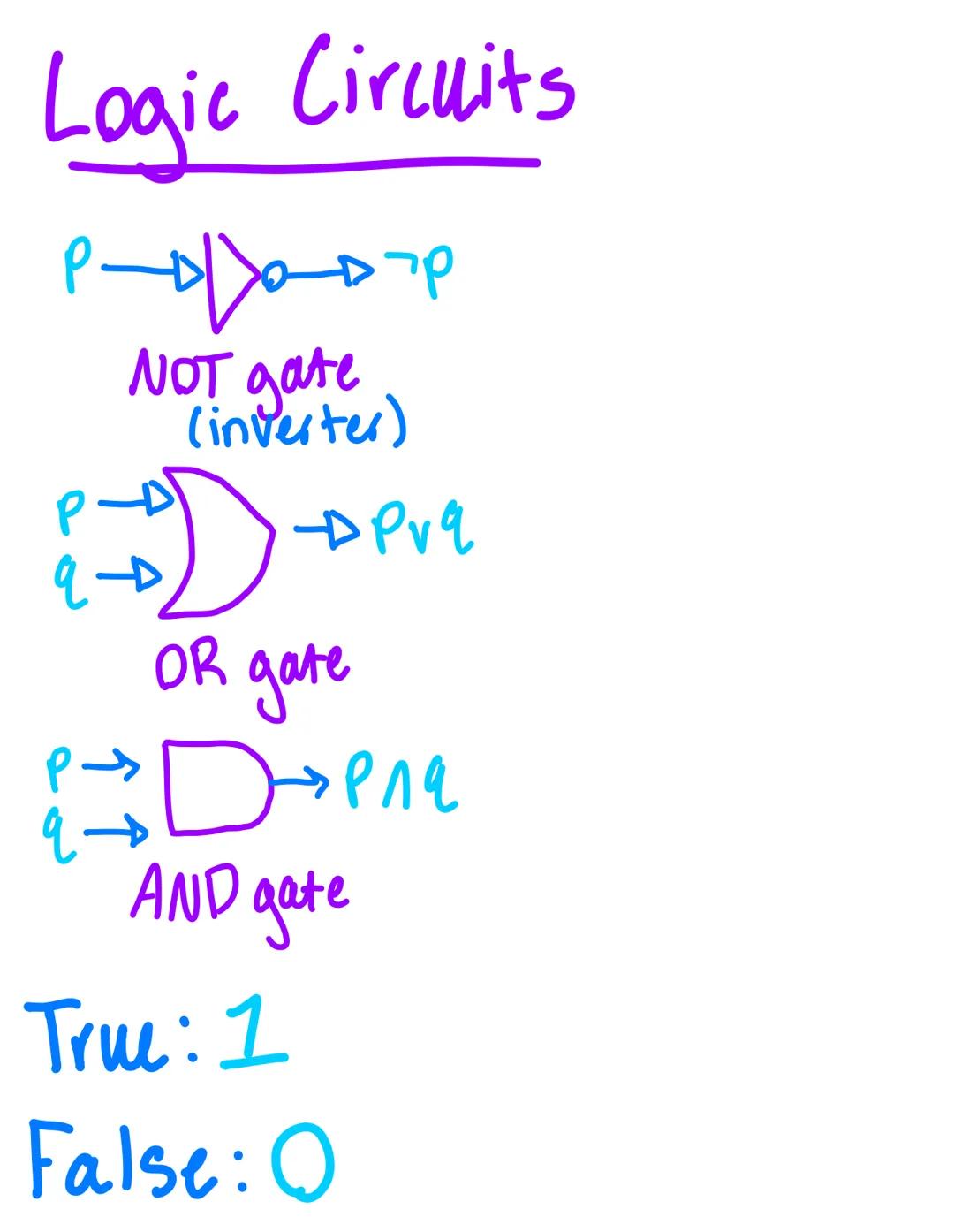

Logic Circuits

Logic circuits are the physical implementations of logical operations. The NOT gate (also called an inverter) takes an input P and produces its opposite value (¬P). It essentially flips the truth value.

The OR gate combines two inputs (P and q) and produces an output that's true if at least one input is true. This is represented mathematically as P∨q.

The AND gate takes two inputs (P and q) and outputs true only if both inputs are true. This is written as P∧q in logical notation.

Quick Tip: Remember that in digital circuits, "True" is represented by 1 and "False" by 0. This binary representation is the foundation of all computer operations!

of 5

$# Logic Circuits P$\longrightarrow$ $\triangleright$$\longrightarrow$$\neg$P NOT gate (inverter) P$\longrightarrow$ $\longrightarrow$P$\v$

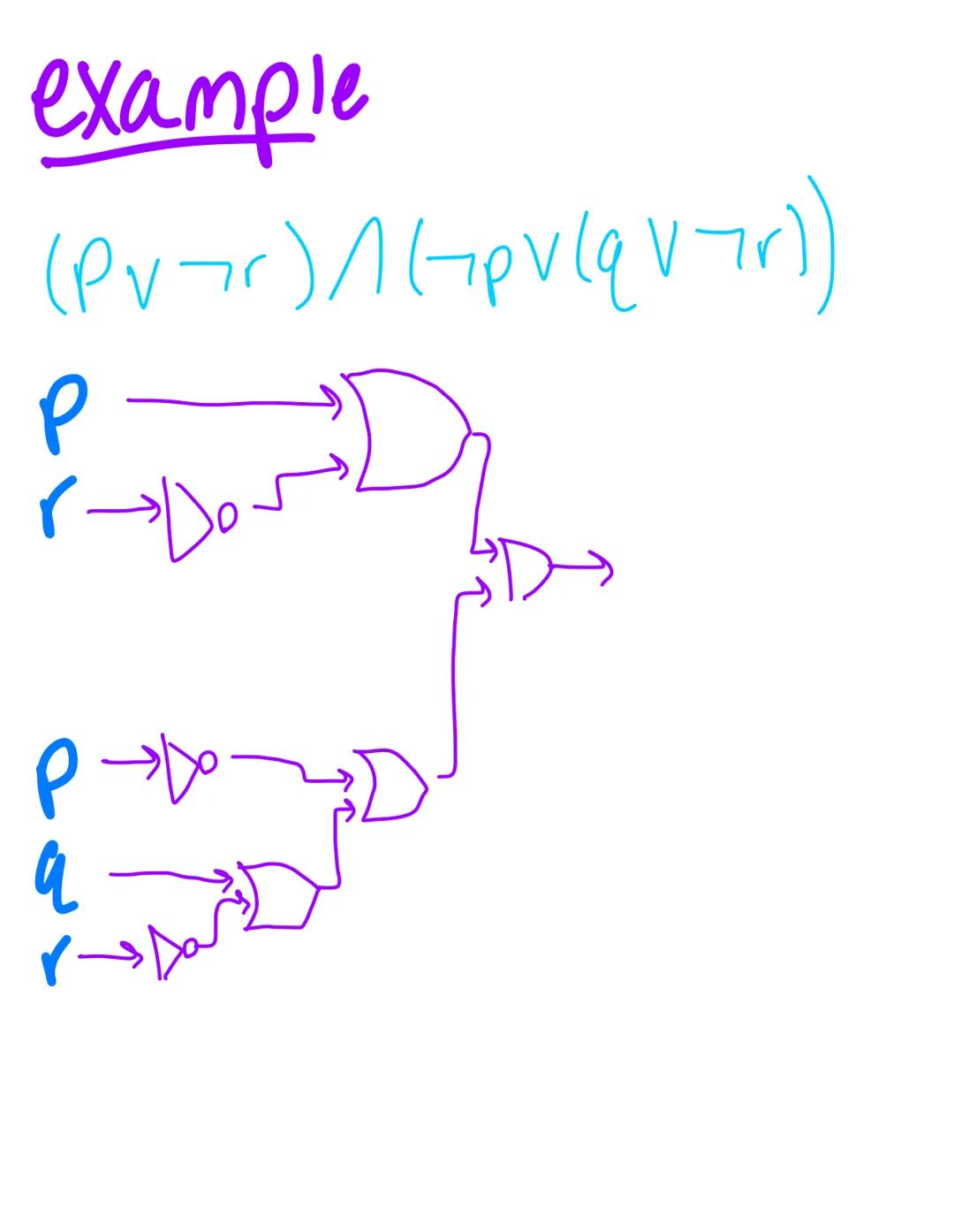

Logic Circuit Examples

Logic circuits can implement complex logical expressions by combining different gates. For example, the expression (p ∨ ¬r) ∧ (¬p ∨ (q ∨ ¬r)) requires multiple gates connected in a specific way.

When drawing circuit diagrams, inputs flow from left to right through various gates. NOT gates (inverters) are used to create negations (¬p, ¬r), while AND and OR gates combine signals according to the logical expression.

The final output represents the truth value of the entire expression for any given input values of p, q, and r. This ability to model logical relationships is what makes digital computers possible!

Remember: When constructing complex circuits, work step by step and follow the order of operations in the logical expression.

of 5

$# Logic Circuits P$\longrightarrow$ $\triangleright$$\longrightarrow$$\neg$P NOT gate (inverter) P$\longrightarrow$ $\longrightarrow$P$\v$

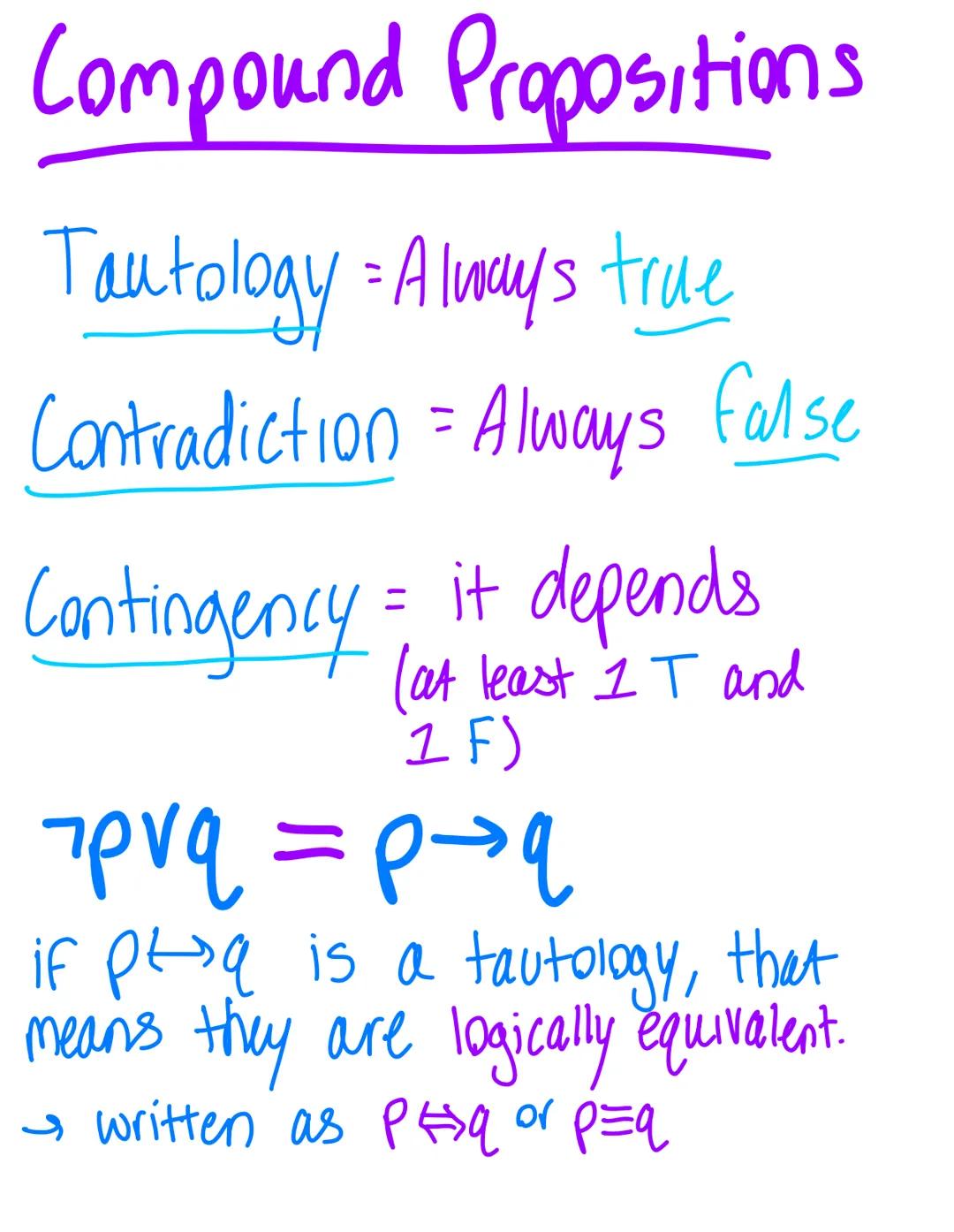

Compound Propositions

Logical statements come in three main types. A tautology is always true regardless of its variables' values (like p ∨ ¬p). A contradiction is always false (like p ∧ ¬p). A contingency depends on its variables, being true for some values and false for others.

An important relationship to know is that p → q (if p then q) is logically equivalent to ¬p ∨ q. This connection is useful for simplifying logical expressions.

When two propositions are logically equivalent, their biconditional (p ↔ q) is a tautology. We can write this equivalence as p ≡ q, meaning they have identical truth tables.

Study Hack: When checking if two statements are logically equivalent, try constructing their truth tables. If the output columns match exactly, they're equivalent!

of 5

$# Logic Circuits P$\longrightarrow$ $\triangleright$$\longrightarrow$$\neg$P NOT gate (inverter) P$\longrightarrow$ $\longrightarrow$P$\v$

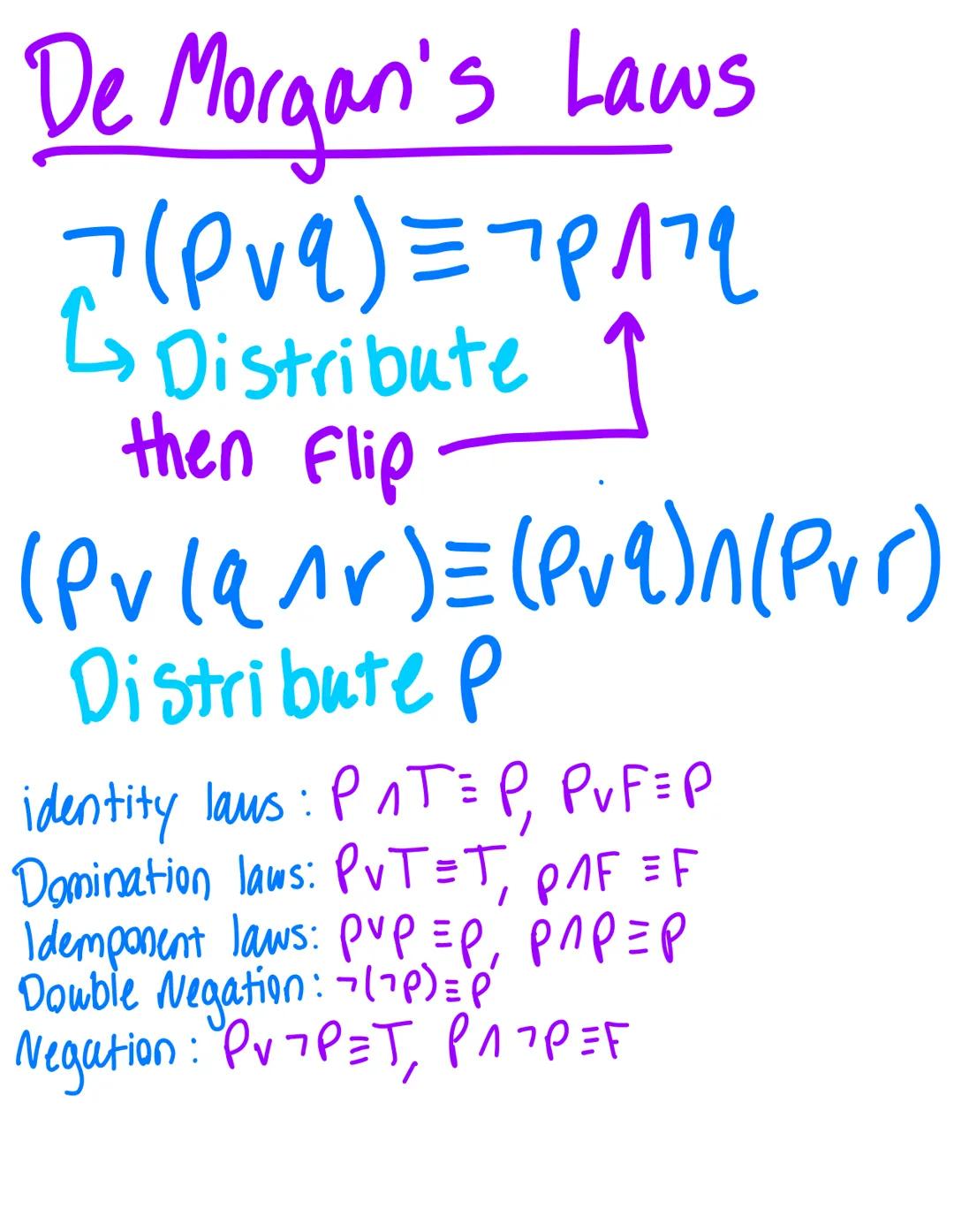

De Morgan's Laws

De Morgan's Laws are powerful tools for manipulating logical expressions. The key insight is that ¬(P∨q) = ¬P∧¬q and ¬(P∧q) = ¬P∨¬q. This means "not (P or q)" equals "not P and not q."

When applying De Morgan's Laws, first distribute the negation, then flip the operator (∨ becomes ∧, and vice versa). This technique helps simplify complex expressions.

Other important laws include identity laws $P∧T=P, P∨F=P$ , domination laws $P∨T=T, P∧F=F$ , and double negation $¬(¬P)=P$ . These laws allow us to manipulate and simplify logical expressions systematically.

Pro Tip: De Morgan's Laws are especially useful when designing circuits since they can help reduce the number of gates needed, making designs more efficient!

of 5

$# Logic Circuits P$\longrightarrow$ $\triangleright$$\longrightarrow$$\neg$P NOT gate (inverter) P$\longrightarrow$ $\longrightarrow$P$\v$

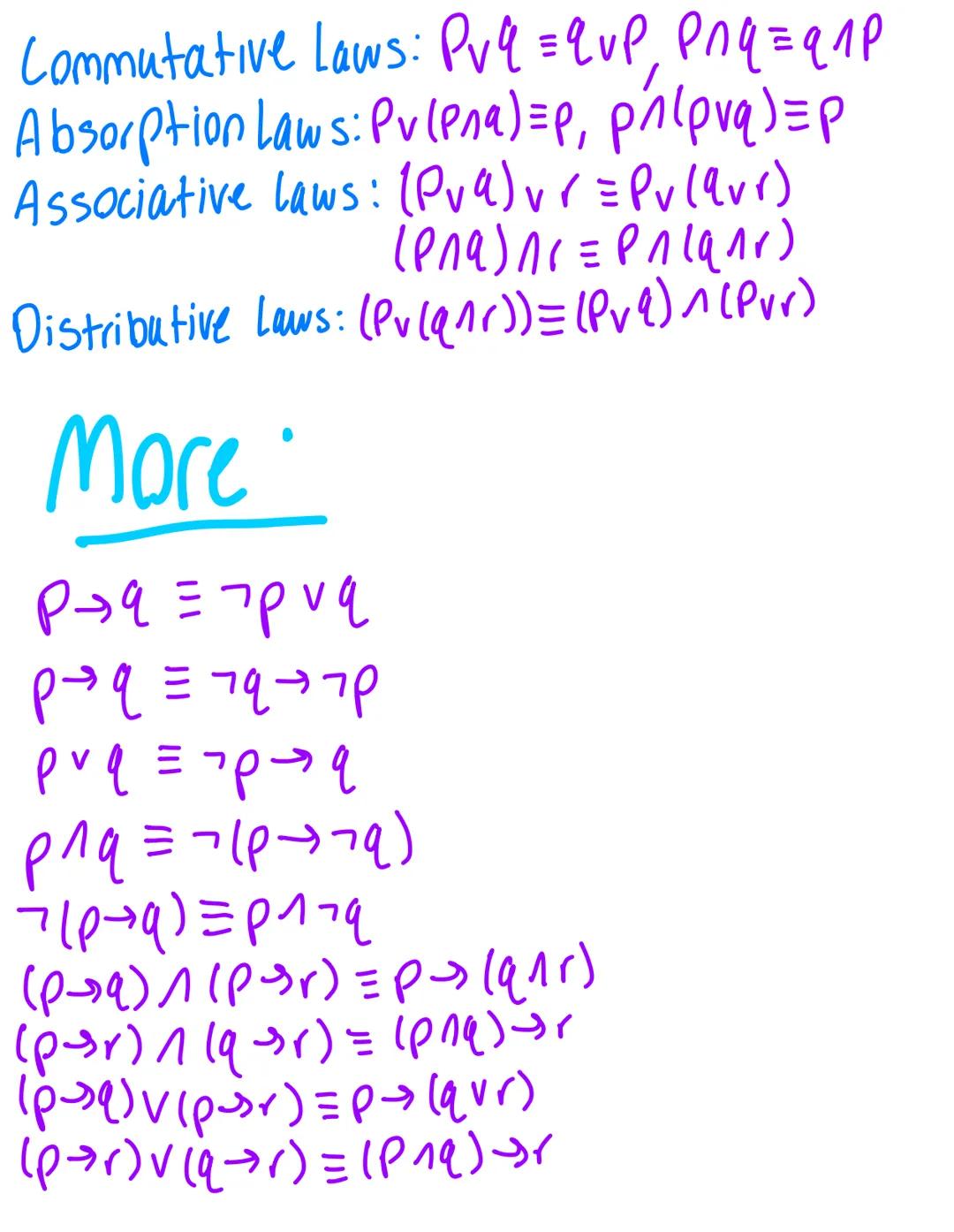

More Logical Laws

The commutative laws state that order doesn't matter in AND and OR operations $P∨q=q∨P, P∧q=q∧P$ . Similarly, associative laws tell us that grouping doesn't matter $(P∨q)∨r=P∨(q∨r)$ .

Distributive laws allow us to expand expressions: P∨(q∧r)=(P∨q)∧(P∨r). This works similar to distributing in algebra but with logical operators instead.

Absorption laws $P∨(P∧q)=P, P∧(P∨q)=P$ help eliminate redundancies in logical expressions. These laws, combined with those on the previous page, form a complete toolkit for manipulating logical expressions.

Application Note: These logical laws aren't just theoretical—they're used daily in computer science to optimize programs, design efficient circuits, and verify that software works correctly!
