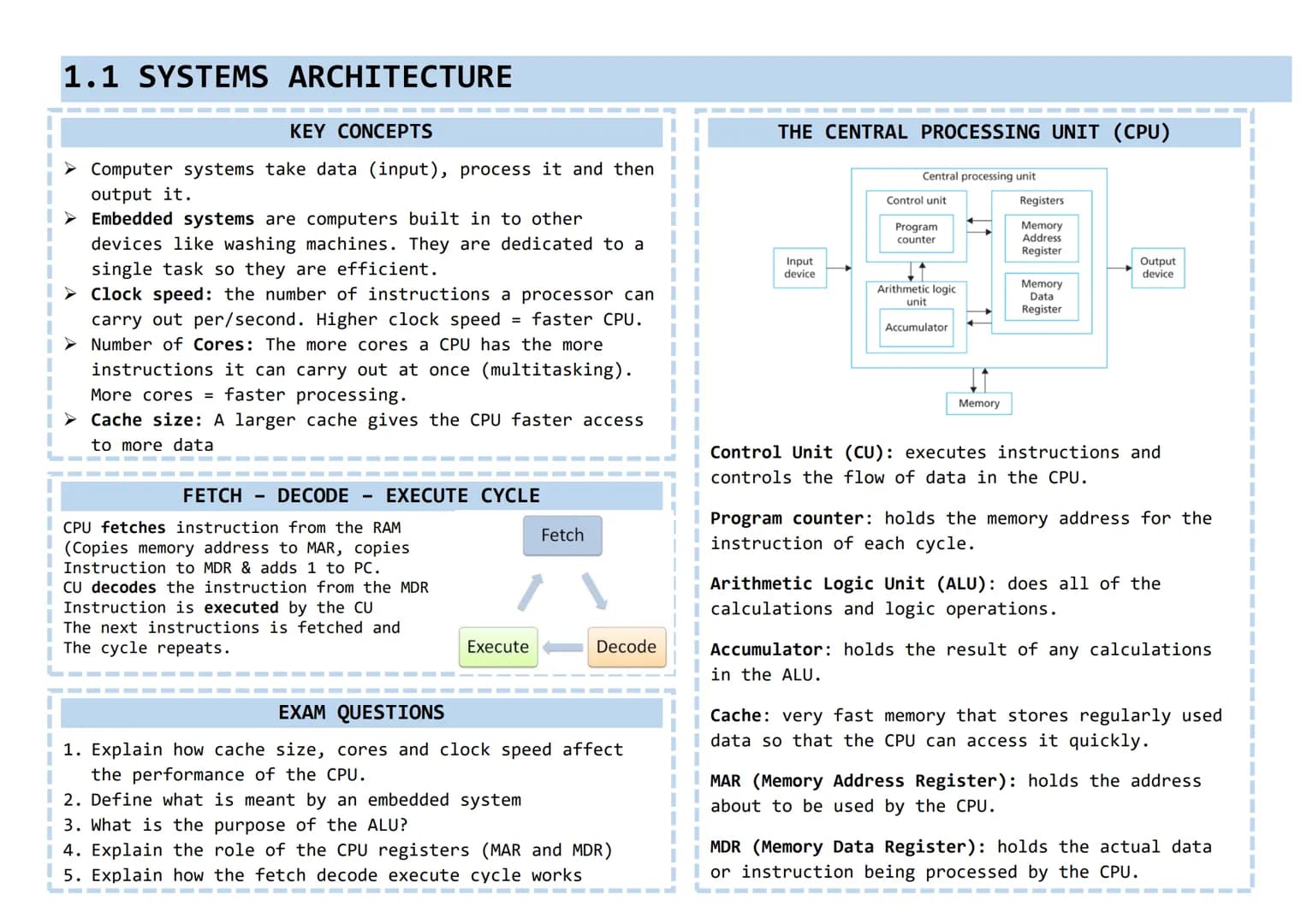

Understanding Computer Systems Architecture and Processing

The Central Processing Unit (CPU) forms the core of modern computer systems, handling data processing through a sophisticated fetch-decode-execute cycle. This fundamental process enables computers to execute instructions and perform calculations essential for both basic and complex operations.

Definition: The fetch-decode-execute cycle represents the fundamental operation cycle of a CPU where instructions are retrieved from memory, interpreted, and executed in a continuous sequence.

The CPU contains several crucial components that work together seamlessly. The Control Unit (CU) manages instruction execution and data flow, while the Arithmetic Logic Unit (ALU) performs mathematical calculations and logical operations. Special registers like the Memory Address Register (MAR) and Memory Data Register (MDR) temporarily store data addresses and values during processing.

Modern CPUs incorporate multiple performance-enhancing features. Clock speed measures instruction execution rate in Hz, with higher speeds enabling faster processing. Multiple cores allow parallel instruction execution, significantly improving multitasking capabilities. Cache memory provides rapid access to frequently used data, reducing the time spent retrieving information from slower main memory.

Example: In a multi-core processor, while one core handles web browsing tasks, another core can simultaneously process spreadsheet calculations, demonstrating efficient parallel processing.

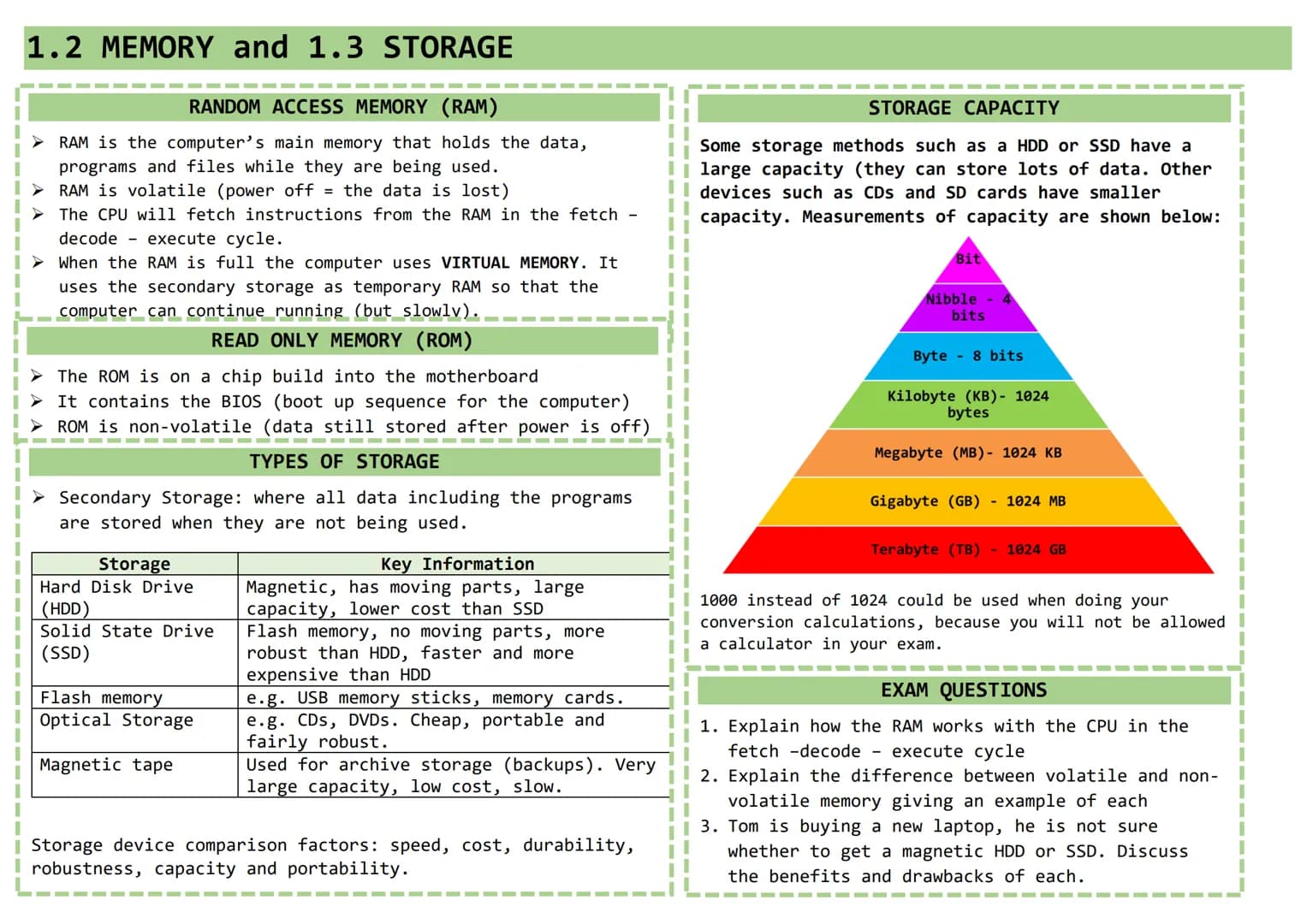

Memory Systems and Storage Technologies

Computer memory systems comprise both volatile and non-volatile components that work together to store and manage data efficiently. Random Access Memory (RAM) serves as the primary working memory, temporarily storing active programs and data for quick CPU access. Though volatile, RAM's speed makes it essential for system performance.

Vocabulary: Virtual memory is a memory management technique that uses hard drive space as an extension of RAM when physical memory becomes full, though at the cost of slower performance.

Storage technologies have evolved to offer various solutions for long-term data retention. Hard Disk Drives (HDDs) provide cost-effective magnetic storage with large capacities, while Solid State Drives (SSDs) offer faster access speeds and improved reliability through flash memory technology. Optical storage $CDs/DVDs$ and magnetic tape serve specialized roles in data archival and distribution.

The measurement of storage capacity follows a binary progression: bytes (8 bits), kilobytes (1024 bytes), megabytes (1024 KB), gigabytes (1024 MB), and terabytes (1024 GB). Understanding these units is crucial for managing storage resources effectively.

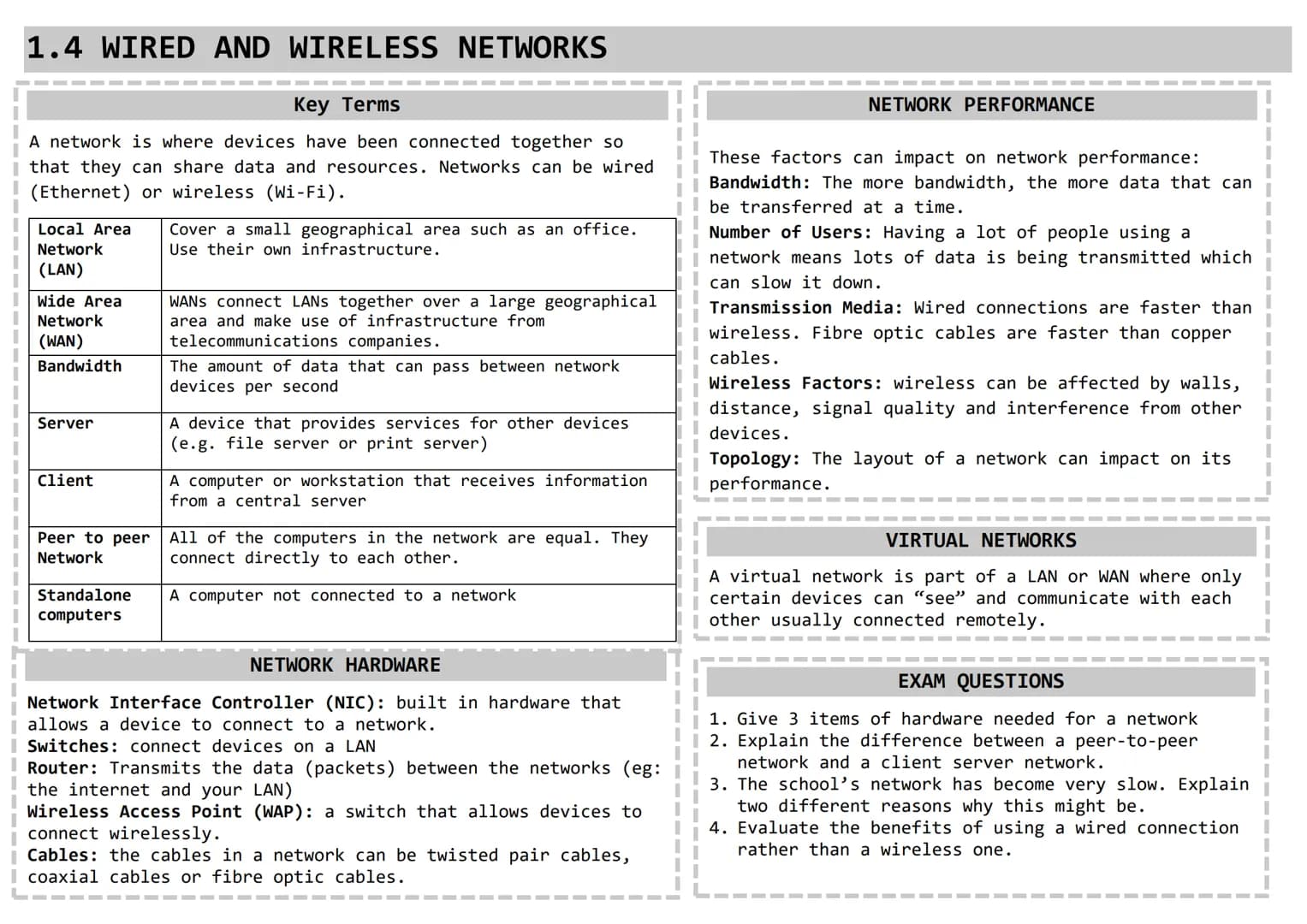

Network Architecture and Communication Systems

Modern computer networks enable device interconnection and resource sharing through various architectures and protocols. Local Area Networks (LANs) serve localized environments like offices or schools, while Wide Area Networks (WANs) connect distributed systems across larger geographical areas.

Highlight: Network performance depends on multiple factors including bandwidth capacity, user count, transmission media quality, and network topology design.

Network hardware components form the infrastructure backbone. Network Interface Controllers (NICs) enable device connectivity, switches manage local data routing, and routers facilitate inter-network communication. The choice between wired (Ethernet) and wireless $Wi-Fi$ connections impacts network reliability and performance.

Virtual networks provide logical separation within physical networks, enabling secure and isolated communication channels for specific device groups. This technology supports remote access and enhanced security through controlled network segmentation.

Advanced Networking Concepts and Performance Optimization

Network performance optimization requires understanding various factors affecting data transmission efficiency. Bandwidth capacity determines maximum data throughput, while the number of concurrent users impacts available resources. Physical infrastructure choices, including cable types and wireless access points, significantly influence network reliability.

Definition: Bandwidth represents the maximum rate of data transfer across a network connection, measured in bits per second (bps).

Network topologies define the physical and logical arrangement of network components, affecting data flow patterns and system resilience. Star topologies centralize connections through a hub or switch, while mesh topologies provide multiple data paths for improved reliability.

Security considerations in modern networks encompass both physical and virtual protections. Firewalls, encryption protocols, and access controls work together to safeguard data transmission and storage, while virtual private networks (VPNs) enable secure remote access to network resources.

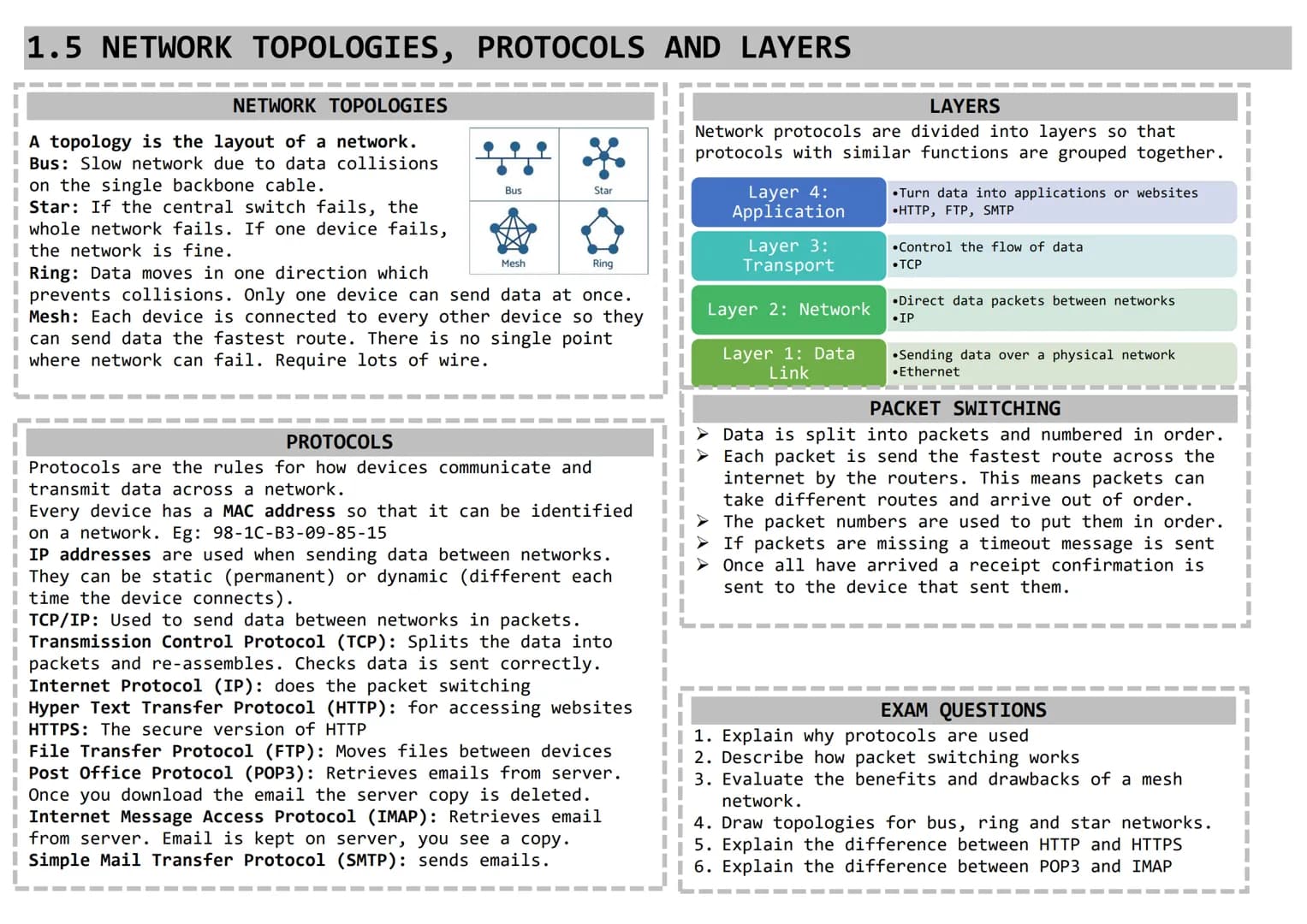

Understanding Network Topologies, Protocols and Network Architecture

Network architecture forms the backbone of modern computing systems, with several key components working together to enable data communication. The fundamental building blocks include network topologies, protocols, and the layered networking model.

Network topologies define the physical and logical arrangement of devices in a network. The Bus topology uses a single backbone cable where all devices connect, though this can lead to data collisions and slower performance. The Star topology employs a central switch connecting all devices - while efficient, it creates a single point of failure. Ring topologies move data in one direction to prevent collisions but limit transmission to one device at a time. Mesh networks connect each device to every other device, providing multiple data paths but requiring extensive cabling.

Network protocols establish the rules and standards for data communication. The TCP/IP protocol suite forms the foundation of modern networking. Transmission Control Protocol (TCP) handles data segmentation and reliability, while Internet Protocol (IP) manages addressing and routing. Application-layer protocols like HTTP (web browsing), FTP (file transfer), and email protocols (SMTP, POP3, IMAP) enable specific network services.

Definition: A network protocol is a set of rules that determines how data is transmitted between different devices in the same network.

The layered network model organizes protocols by function:

• Application Layer (Layer 4): User-facing services and applications
• Transport Layer (Layer 3): End-to-end data delivery and flow control
• Network Layer (Layer 2): Addressing and routing between networks
• Data Link Layer (Layer 1): Physical transmission and error detection

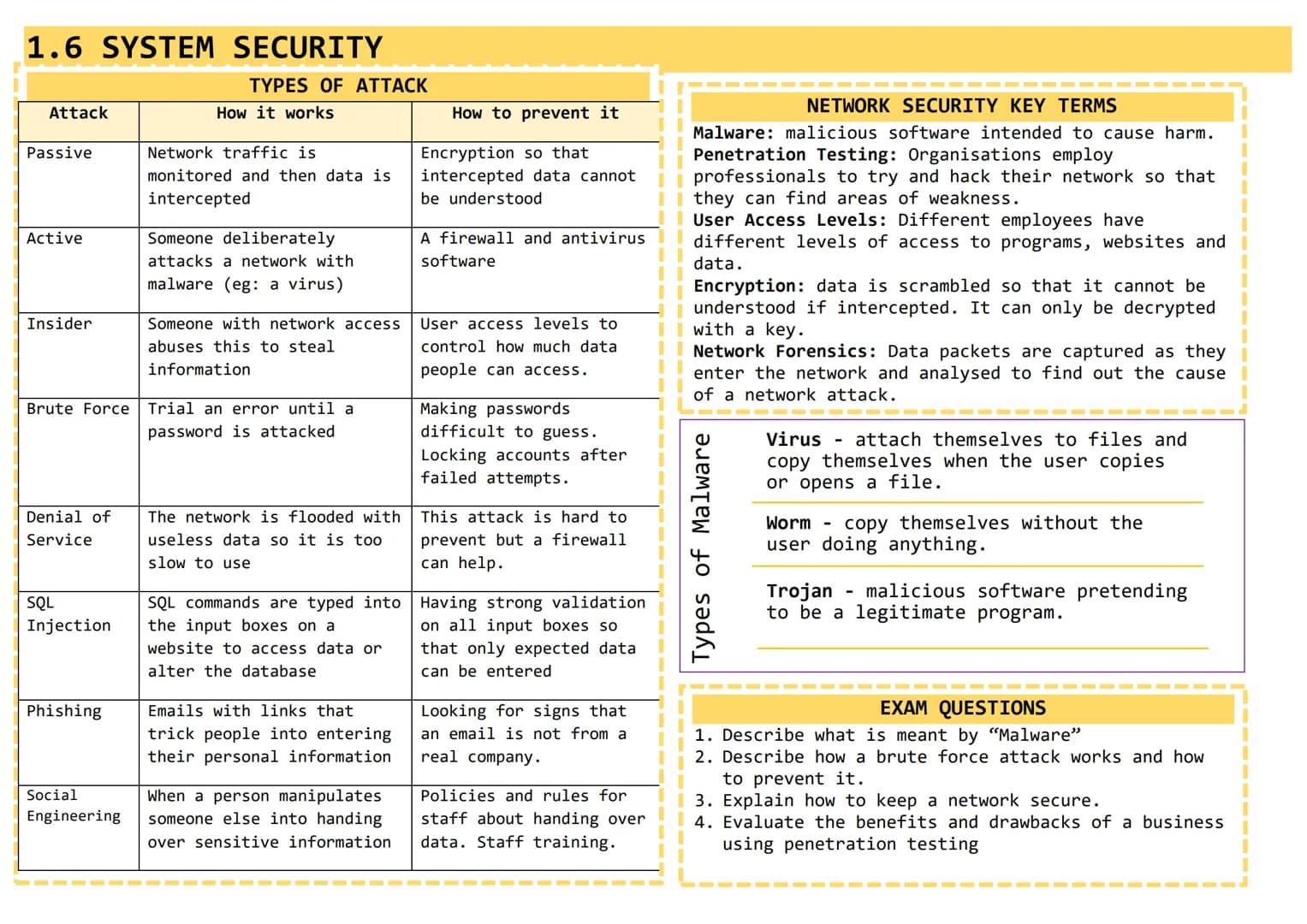

Computer System Security and Threat Protection

Modern computer systems face numerous security threats that require robust protection measures. Understanding these threats and implementing appropriate countermeasures is crucial for maintaining system integrity and data security.

Common attack vectors include passive monitoring, active attacks, insider threats, and social engineering. Brute force attacks attempt to crack passwords through exhaustive trial-and-error, while Denial of Service (DoS) attacks overwhelm systems with traffic. SQL injection exploits vulnerable database inputs, and phishing attempts to steal credentials through deception.

Highlight: Security measures must address both technical vulnerabilities and human factors through a comprehensive approach combining software tools and user education.

Protection mechanisms include:

• Encryption for data confidentiality
• Firewalls and antivirus software for threat prevention
• Access control systems for user management
• Network monitoring and forensics
• Regular security audits and penetration testing

Malware poses a significant threat, including viruses that attach to files, self-replicating worms, and trojans disguised as legitimate software. Organizations must implement multi-layered security strategies combining technical controls with user awareness training.

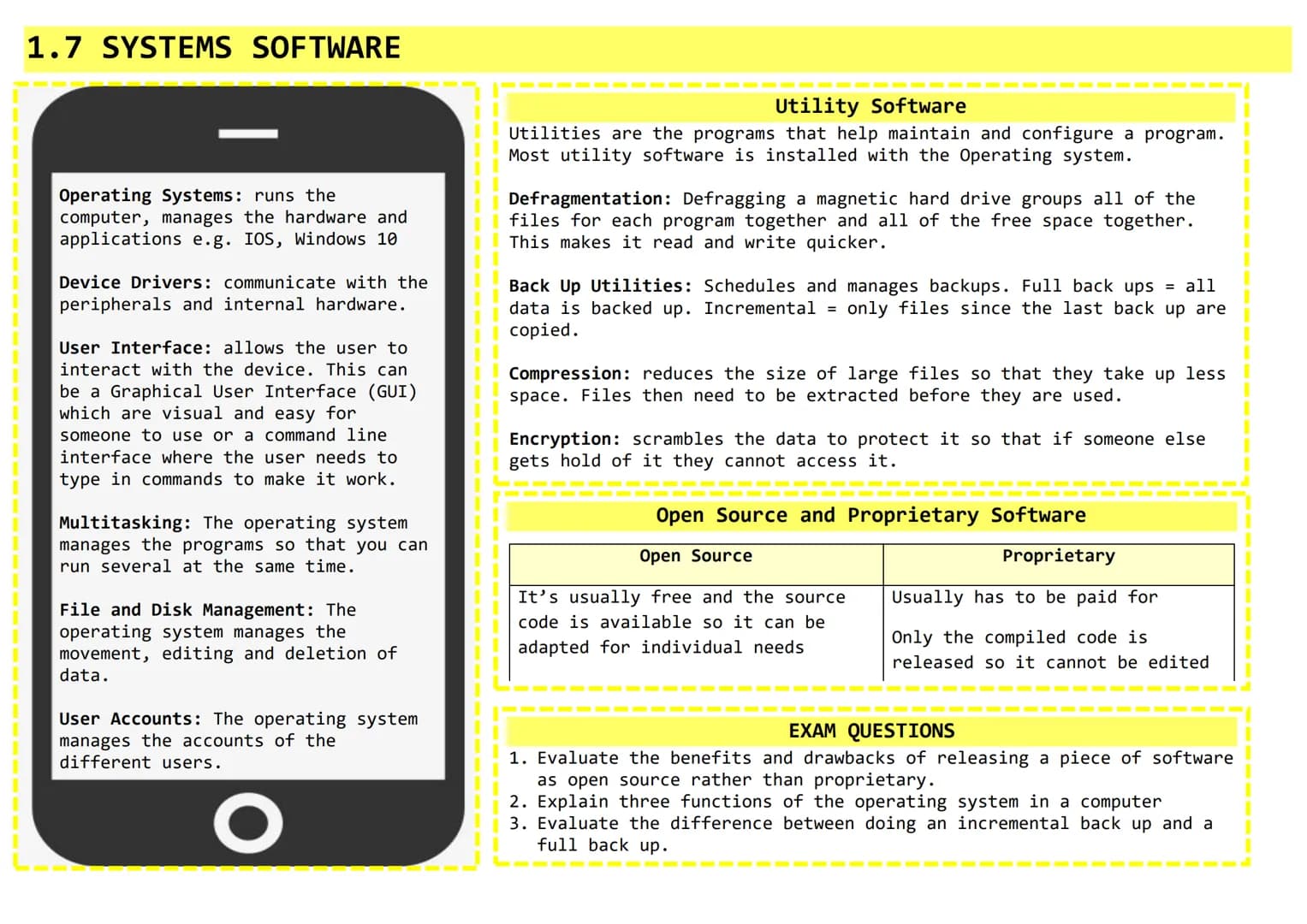

Systems Software and Operating System Components

Systems software provides the essential foundation for computer operation, with the operating system serving as the primary interface between hardware and applications. The Operating System manages hardware resources, provides user interfaces, and enables multitasking capabilities.

Key operating system functions include:

• Device driver management for hardware communication
• User interface provision $GUI or command-line$
• File system management and storage control
• Process scheduling and memory management
• User account administration and security

Vocabulary: Device drivers are specialized programs that allow the operating system to communicate with specific hardware components.

Utility software complements the operating system by providing maintenance and optimization tools. Essential utilities include disk defragmentation tools, backup software, file compression utilities, and encryption programs. The choice between open-source and proprietary software impacts flexibility, cost, and support options.

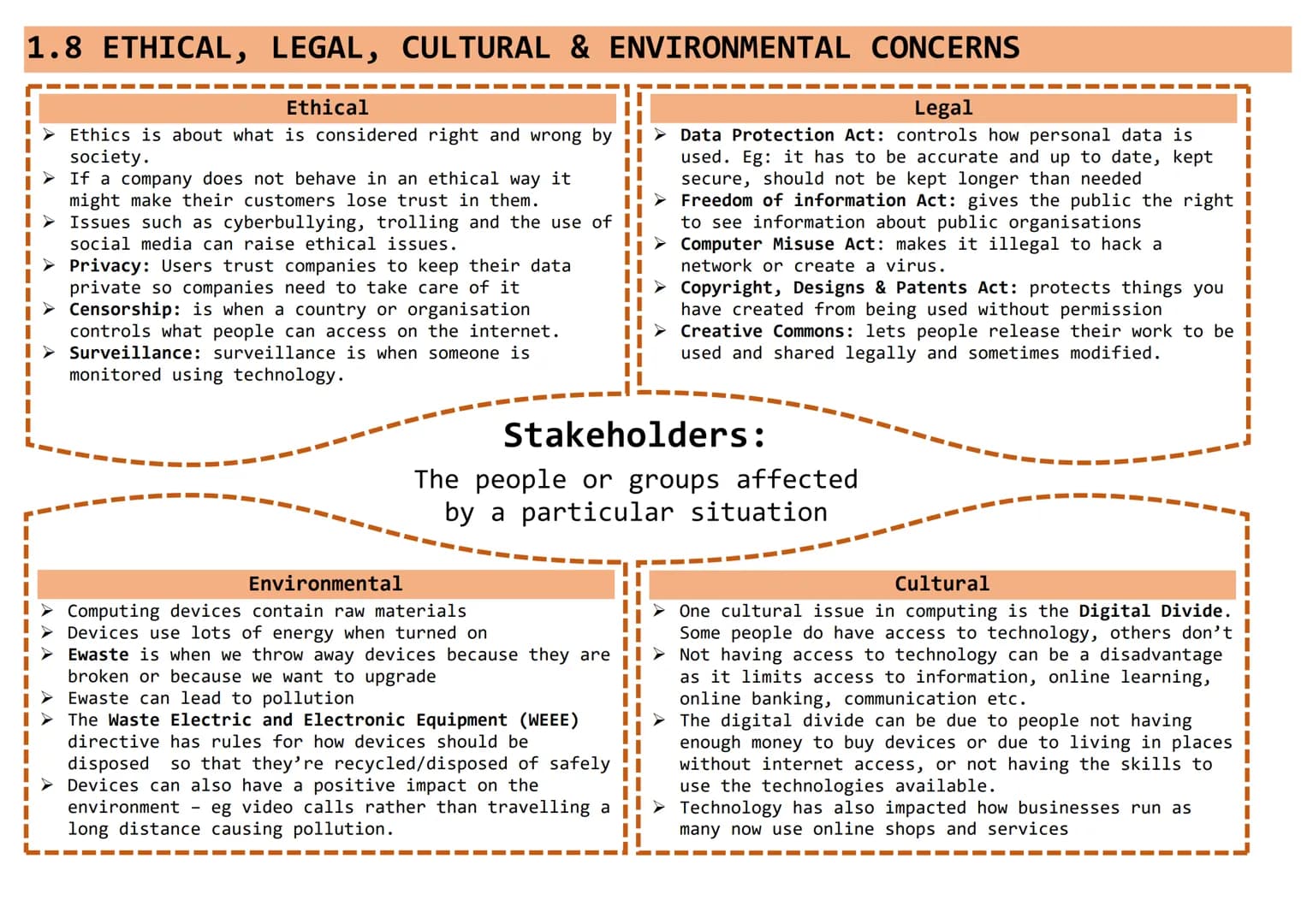

Ethical, Legal, and Environmental Considerations in Computing

The digital age brings significant ethical, legal, and environmental challenges that must be carefully considered in technology deployment and use. Privacy concerns, data protection, and responsible technology use are paramount considerations.

Legal frameworks govern technology use through various regulations:

• Data Protection Act for personal information handling
• Computer Misuse Act preventing unauthorized access
• Copyright, Designs & Patents Act protecting intellectual property
• Freedom of Information Act ensuring public access to information

Example: The digital divide illustrates how technology access disparities can create social and economic inequalities, highlighting the importance of inclusive digital strategies.

Environmental impacts of computing include:

• Electronic waste management challenges
• Energy consumption concerns
• Resource utilization for device manufacturing
• Carbon footprint of data centers and networks

Cultural considerations encompass digital inclusion, accessibility, and the transformation of traditional practices through technology adoption. Organizations must balance innovation with responsible technology use while considering diverse stakeholder needs.

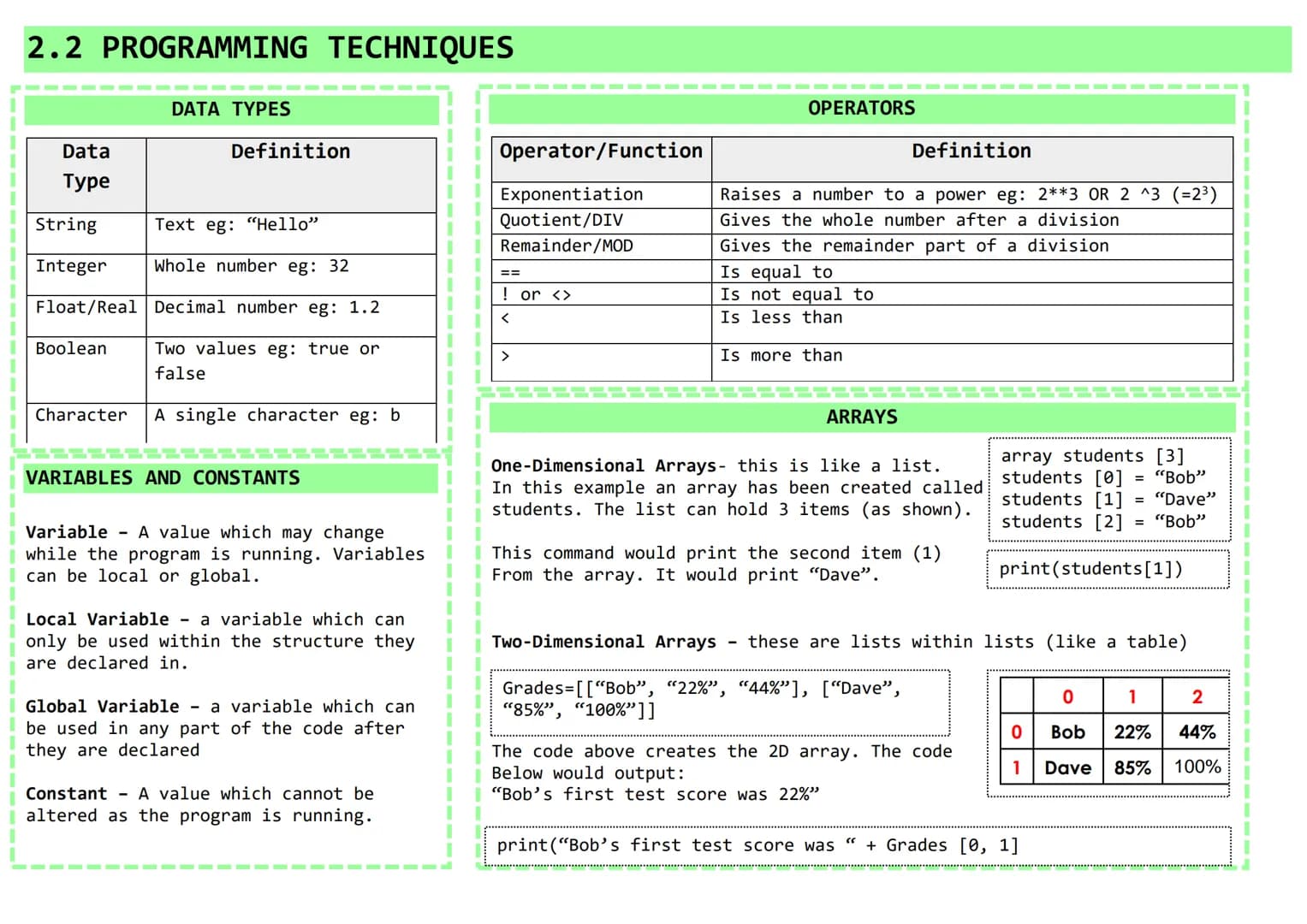

Essential Programming Techniques and Data Types in Computer Science

The foundation of GCSE Computer Science revolves around understanding fundamental programming concepts and data types. These building blocks are crucial for developing efficient and well-structured programs.

Data types form the cornerstone of programming languages, each serving specific purposes in code execution. Boolean values operate as binary choices, holding either true or false states, making them essential for conditional logic and decision-making processes. Strings handle text data, storing sequences of characters like "Hello World" or user names. Integer values manage whole numbers without decimal points, while Float/Real numbers accommodate decimal values crucial for mathematical calculations requiring precision.

Definition: A variable is a container for storing data values that can change during program execution, while a constant holds values that remain fixed throughout the program's lifecycle.

Variables come in two primary categories: local and global. Local variables operate within specific code blocks or functions where they're declared, promoting better memory management and code organization. Global variables, accessible throughout the entire program after declaration, require careful implementation to prevent unintended side effects and maintain code clarity.

Arrays serve as powerful data structures for organizing and managing collections of related data. One-dimensional arrays function like simple lists, storing sequences of values accessible through index numbers. Two-dimensional arrays expand this concept into table-like structures, perfect for managing complex data relationships like student grades across multiple subjects or test scores over different periods.

Example:

grades = [["Bob", "85%", "92%"], ["Alice", "78%", "88%"]]
# Accessing Bob's first test score:
print(grades[0][1])  # Outputs: 85%

Advanced Programming Operators and Control Structures

Programming operators enable sophisticated calculations and comparisons essential for the fetch-decode-execute cycle and broader program functionality. Understanding these operators is crucial for developing efficient algorithms and solving complex computational problems.

Mathematical operators extend beyond basic arithmetic to include specialized functions like exponentiation (raising numbers to powers) and modulo operations (finding remainals). The DIV operator performs integer division, while MOD returns remainder values, both crucial for various programming applications from simple calculations to complex algorithms.

Highlight: Comparison operators (==, !=, <, >) form the basis of conditional logic and decision-making in programs, enabling dynamic program flow based on data evaluation.

Control structures utilize these operators to direct program execution paths. Understanding how to implement and combine these elements effectively is essential for creating robust programs that can handle various input scenarios and processing requirements. This knowledge directly applies to practical programming tasks and forms a crucial part of the OCR GCSE Computer Science revision resources.

Vocabulary:

• Exponentiation: The operation of raising a number to a power
• Quotient: The result of division without the remainder
• Modulo: The remainder operation after division
• Boolean operators: Logical operators that work with true/false values

These concepts form the foundation of computer programming and are essential topics covered in GCSE Computer Science revision notes PDF materials and OCR GCSE Computer Science questions by topic resources.
