Lewis Dot Structures are visual representations showing how valence electrons...
Chemistry83 views·Updated Jun 12, 2026·2 pagesUnderstanding Lewis Dot Structures
Chloe Walker@chlo.walk25
1
of 2

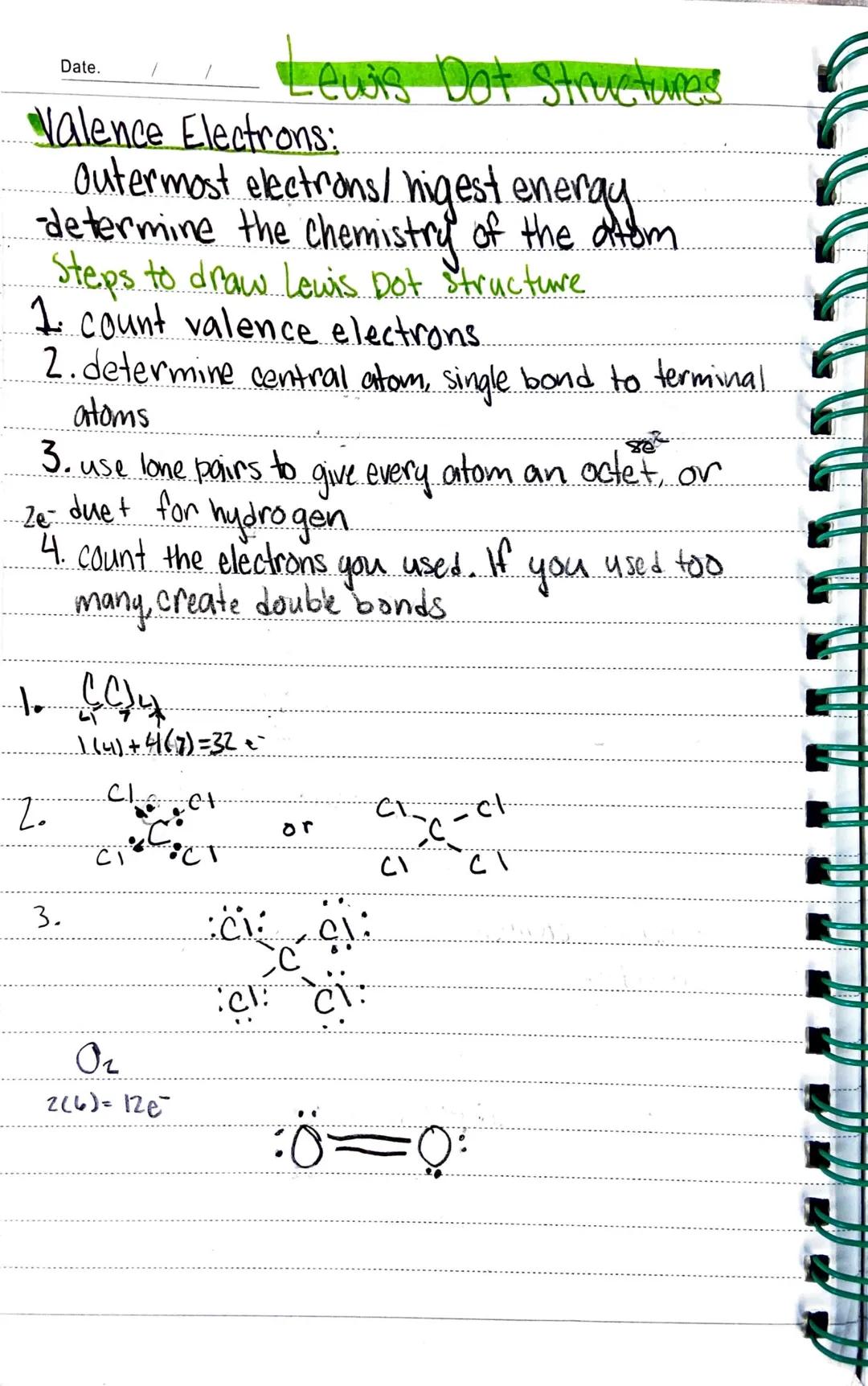

Understanding Lewis Dot Structures
Valence electrons are the outermost electrons in an atom that determine how it will interact chemically with other atoms. These electrons are the ones that participate in bonding.
Creating Lewis Dot Structures follows a simple four-step process. First, count the total valence electrons in your molecule. Second, identify the central atom and connect it to terminal atoms with single bonds. Third, distribute the remaining electrons as lone pairs to give each atom a complete octet (or duet for hydrogen). Finally, if you've used too many electrons, form double or triple bonds.
Let's see this in action with CCl₄ (carbon tetrachloride). Carbon contributes 4 valence electrons, and each chlorine contributes 7, giving us 32 total electrons. After placing carbon as the central atom and connecting it to four chlorines with single bonds, we distribute the remaining electrons to give each chlorine atom a full octet.
Quick Tip: When counting valence electrons, remember that Group 1 elements have 1 valence electron, Group 2 have 2, and so on. For main group elements, the group number equals the number of valence electrons!
2
of 2

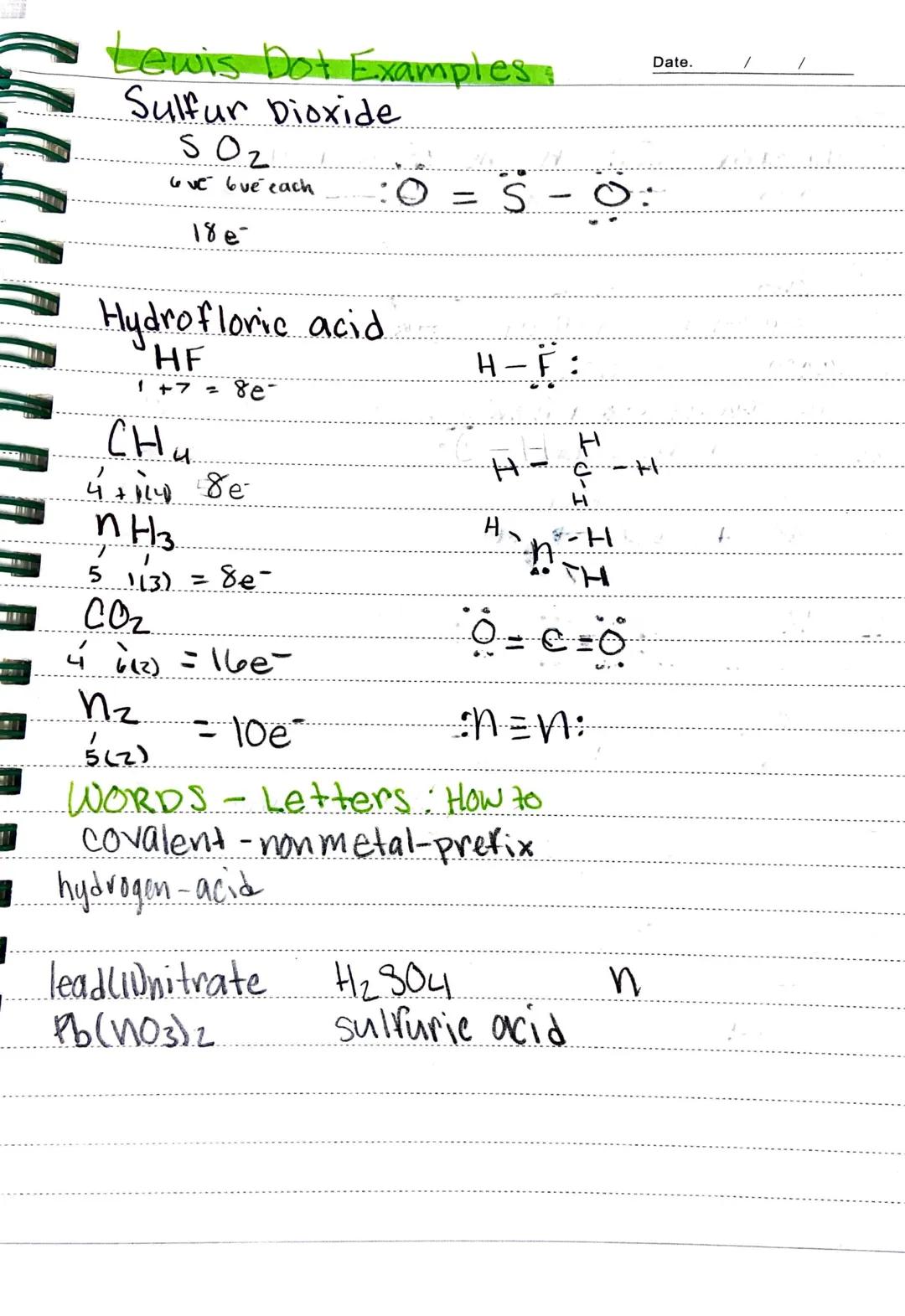

Lewis Dot Structure Examples
Molecules can form various types of bonds to achieve stability. In sulfur dioxide (SO₂), sulfur and oxygen atoms each contribute 6 valence electrons. The resulting structure shows a double bond between sulfur and one oxygen, and a single bond with the other oxygen, with lone pairs completing each atom's octet.
Simple molecules like HF (hydrofluoric acid) show a single bond between hydrogen and fluorine with three lone pairs on fluorine. Meanwhile, methane (CH₄) displays carbon's ability to form four single bonds with hydrogen atoms, perfectly sharing electrons to achieve stability.
Carbon dioxide (CO₂) demonstrates how multiple bonds work, with each oxygen forming a double bond with the central carbon atom. Similarly, nitrogen (N₂) forms a triple bond between two nitrogen atoms, showing how atoms can share six electrons to reach a stable electron configuration.
Remember This: When creating Lewis structures for compounds with polyatomic ions, don't forget to account for the charge when calculating the total number of valence electrons!
