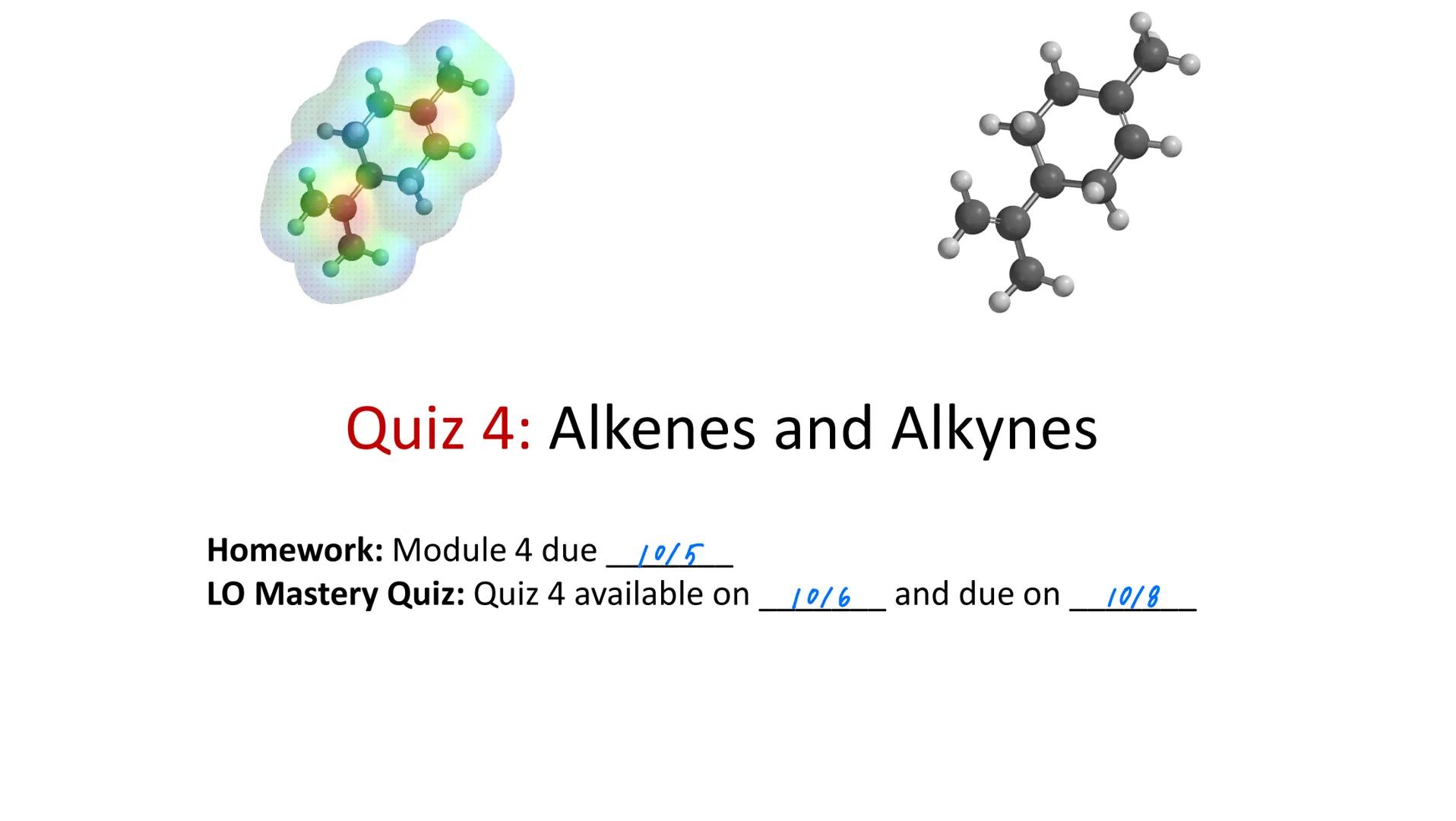

Quiz 4 Information

The upcoming quiz on alkenes and alkynes will test your understanding of addition reactions and their mechanisms. The quiz covers how π bonds in these molecules serve as sites for chemical reactions.

Key dates to remember:

• Module 4 homework is due on 10/5
• Quiz 4 will be available on 10/6 and due on 10/8

This quiz focuses on one main question: What are the mechanisms and products of addition reactions? You'll need to understand how reactants attack π bonds and what products form under different conditions.

Pro Tip: Create a summary sheet with all reaction types and their mechanisms to study efficiently. Focus on understanding patterns rather than memorizing individual reactions.

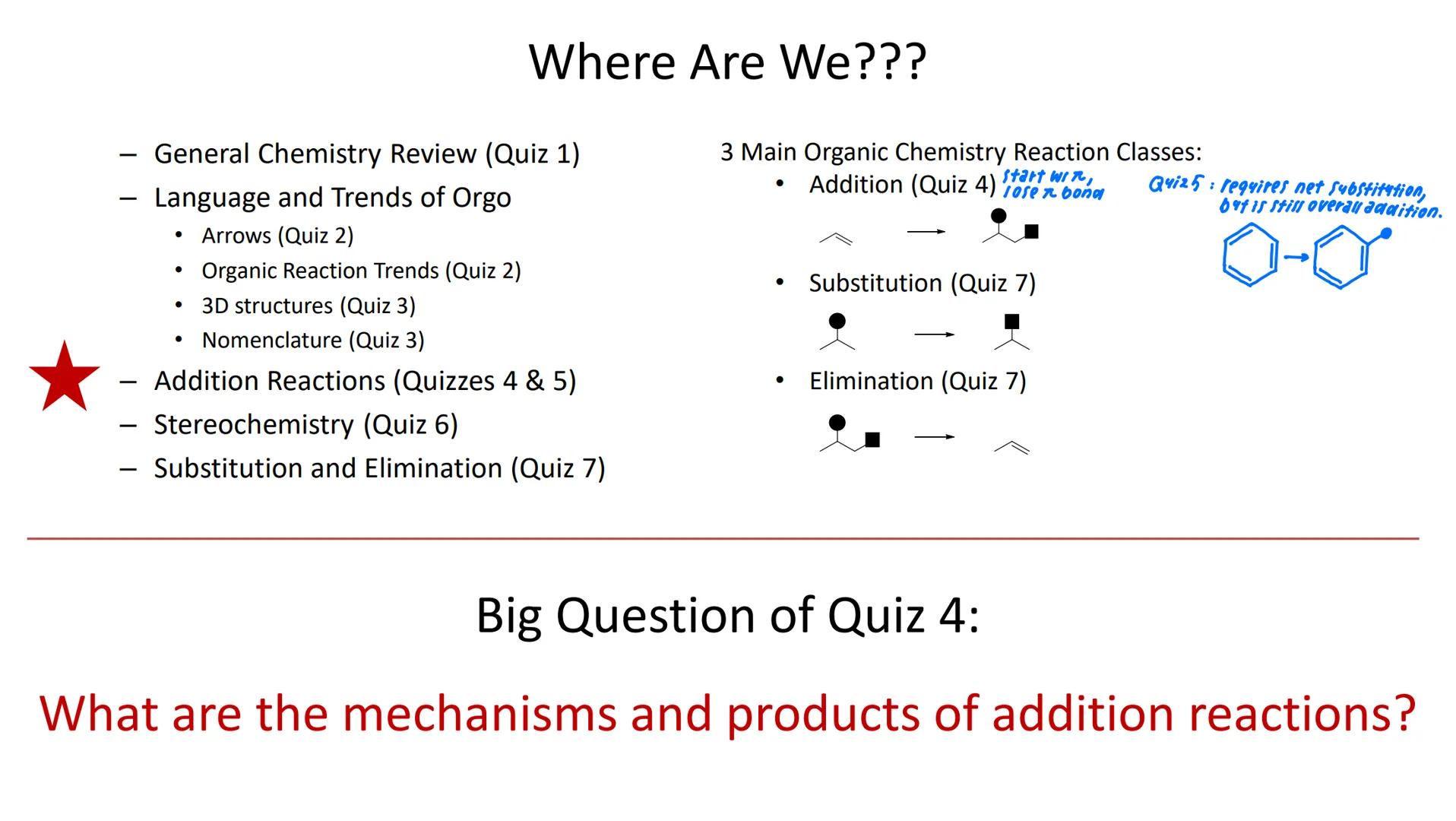

Organic Chemistry Roadmap

We're currently exploring addition reactions of alkenes and alkynes. This builds on your earlier knowledge of organic chemistry fundamentals:

We've already covered:

• General chemistry review
• The language of organic chemistry (arrows, reaction trends)
• 3D structures and nomenclature

We're now focusing on addition reactions, where molecules add across π bonds, breaking them in the process. These reactions form the first of three main reaction classes in organic chemistry:

1. Addition reactions - Start with a π bond and lose it during reaction
2. Substitution reactions - Replace one group with another
3. Elimination reactions - Create π bonds by removing atoms/groups

Understanding addition reactions provides the foundation for more complex organic transformations we'll study later.

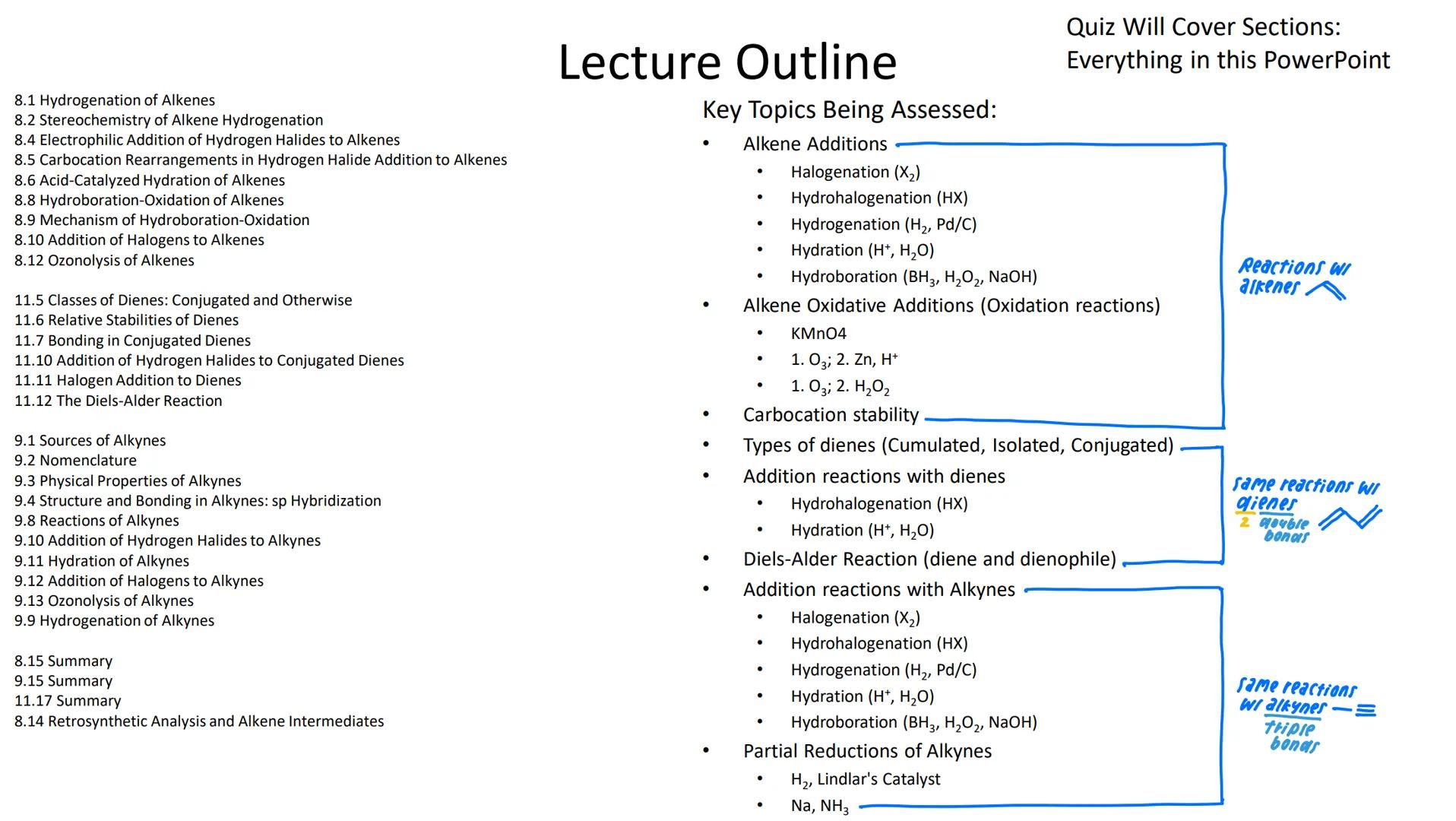

Quiz 4 Content Overview

The quiz will cover a comprehensive range of addition reactions for alkenes, dienes, and alkynes. You should understand the following reactions and be able to predict their products:

For Alkenes:

• Hydrogenation
• Hydrohalogenation (HX addition)
• Hydration (water addition)
• Hydroboration-oxidation
• Halogenation (X₂ addition)
• Oxidative reactions (KMnO₄, ozonolysis)

For Dienes:

• Types (conjugated, isolated, cumulated)
• Addition reactions
• Diels-Alder reactions

For Alkynes:

• Similar addition reactions as alkenes
• Partial reductions using specialized catalysts

Important Concepts:

• Carbocation stability
• Regiochemistry $Markovnikov vs. anti-Markovnikov$
• Stereochemistry of additions (syn vs. anti)

Remember: Each reaction follows specific patterns that determine which atoms end up where in the product. Focus on understanding the underlying mechanisms rather than trying to memorize each reaction individually.

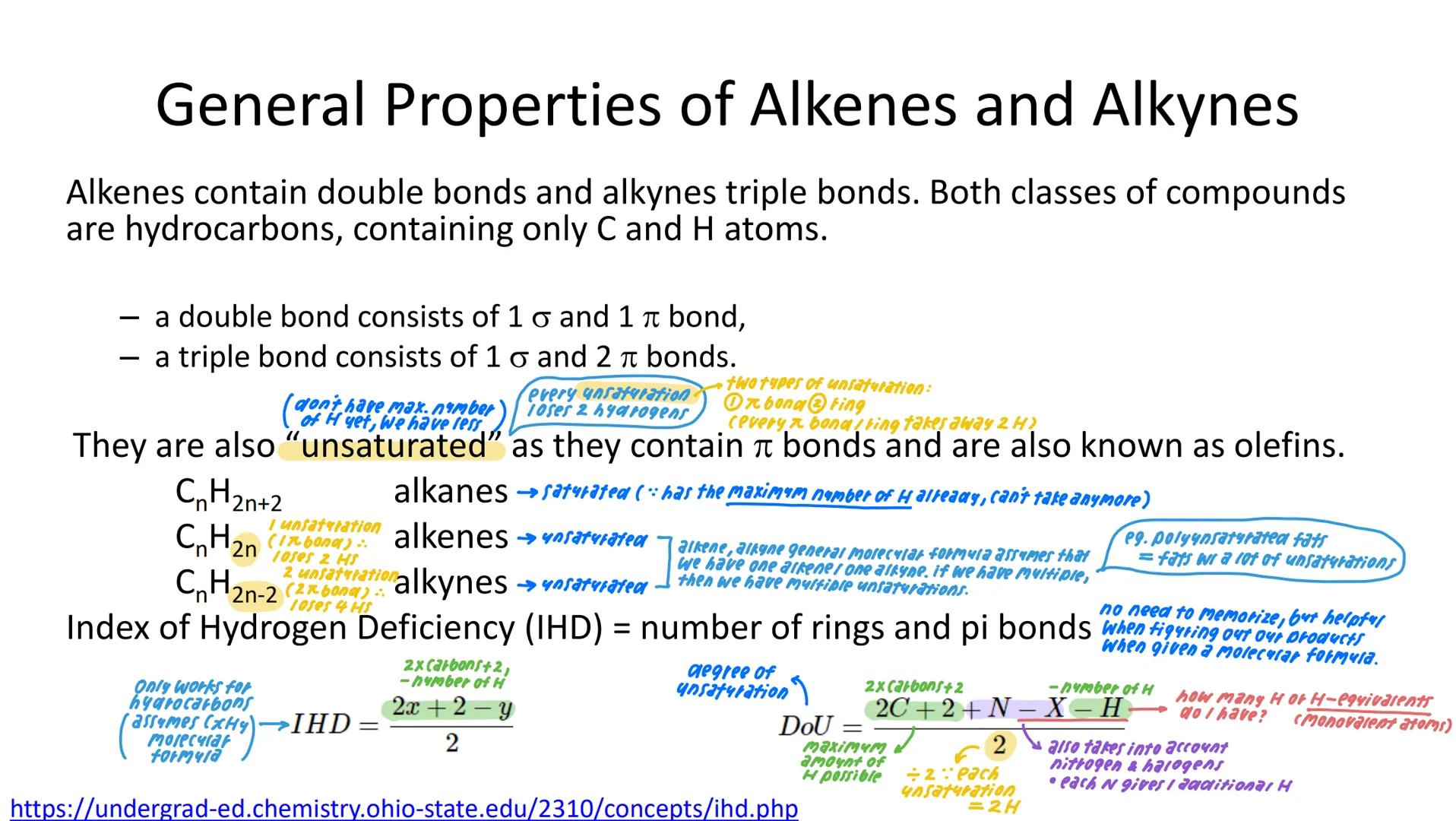

Properties of Alkenes and Alkynes

Alkenes and alkynes are unsaturated hydrocarbons containing fewer hydrogen atoms than their saturated counterparts. This unsaturation comes from π bonds or rings in the molecule.

Key Structures:

• Alkenes: contain a C=C double bond $1 σ + 1 π bond$
• Alkynes: contain a C≡C triple bond $1 σ + 2 π bonds$

General Formulas:

• Alkanes (saturated): C₍ₙ₎H₍₂ₙ₊₂₎
• Alkenes (1 π bond): C₍ₙ₎H₍₂ₙ₎
• Alkynes (2 π bonds): C₍ₙ₎H₍₂ₙ₋₂₎

A useful tool is the Index of Hydrogen Deficiency (IHD), which tells you the total number of rings and π bonds in a hydrocarbon:

IHD = $2C + 2 - H$/2

For example, a molecule with formula C₄H₈ has an IHD of 1, indicating either one π bond or one ring.

Helpful Insight: Each unsaturation (π bond or ring) reduces the maximum possible hydrogen count by 2. This explains why polyunsaturated fats have multiple π bonds and fewer hydrogens.

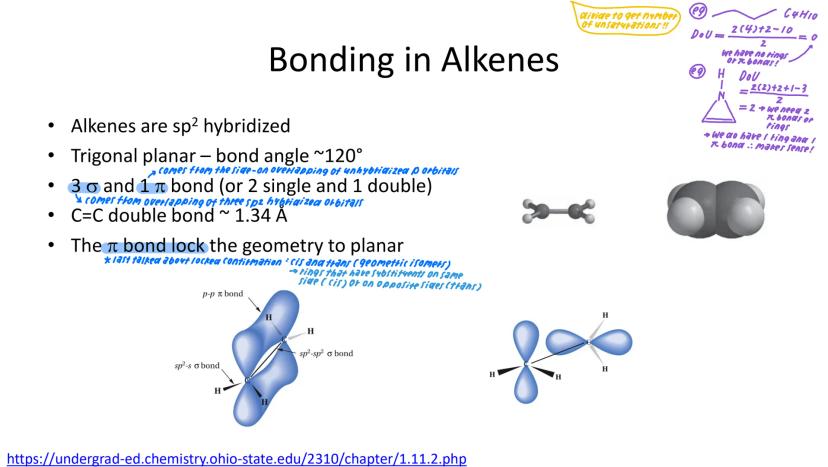

Bonding in Alkenes

Alkenes feature carbon atoms that are sp² hybridized, creating a trigonal planar geometry with bond angles of approximately 120°. This hybridization is crucial for understanding their reactivity.

Key Features:

• Each carbon in the double bond forms three σ bonds using sp² hybridized orbitals
• The π bond forms from the side-by-side overlap of unhybridized p orbitals
• The C=C bond length (~1.34 Å) is shorter than a C-C single bond

The π bond is particularly important because it locks the geometry around the double bond, preventing free rotation. This creates the possibility of geometric isomers $cis/trans or E/Z$.

When calculating the degree of unsaturation (DOU) for molecules, remember:

• C₄H₁₀ has DOU = 0 (no rings or π bonds)
• C₂H₃N has DOU = 2 $could be 2 π bonds, or 1 ring + 1 π bond$

The sp² hybridization explains why alkenes readily undergo addition reactions - the π bond is accessible to attacking reagents.

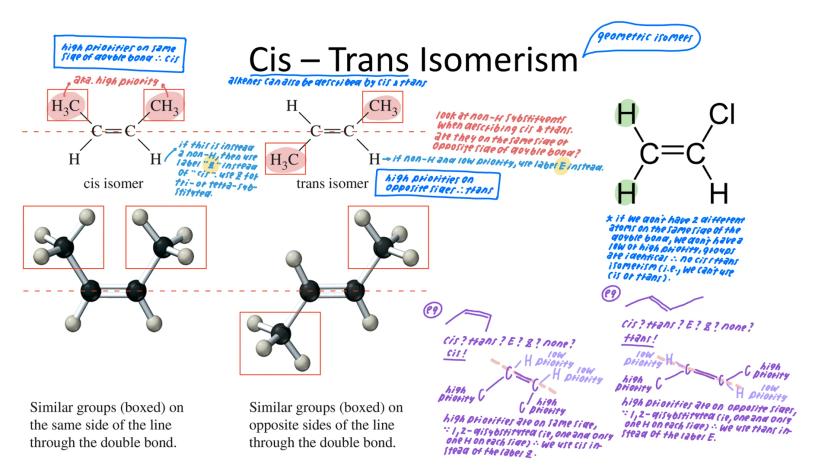

Cis-Trans Isomerism in Alkenes

Alkenes can form geometric isomers due to the restricted rotation around the double bond. These isomers are named using either cis/trans or E/Z terminology.

Cis-Trans System:

• Cis: Similar groups on the same side of the double bond
• Trans: Similar groups on opposite sides of the double bond

This system works well for 1,2-disubstituted alkenes with one hydrogen on each carbon of the double bond.

E/Z System: For more complex alkenes, we use the E/Z system:

• E (entgegen): Higher priority groups on opposite sides
• Z (zusammen): Higher priority groups on the same side

When determining geometric isomers:

1. Identify the substituents on each carbon of the double bond
2. Assign priorities based on atomic number $higher = higher priority$
3. Determine if high-priority groups are on the same side $Z/cis$ or opposite sides $E/trans$

Some alkenes cannot form geometric isomers, such as those with identical groups on one carbon of the double bond.

Quick Check: If both carbons of the double bond have identical groups, the molecule cannot form geometric isomers.

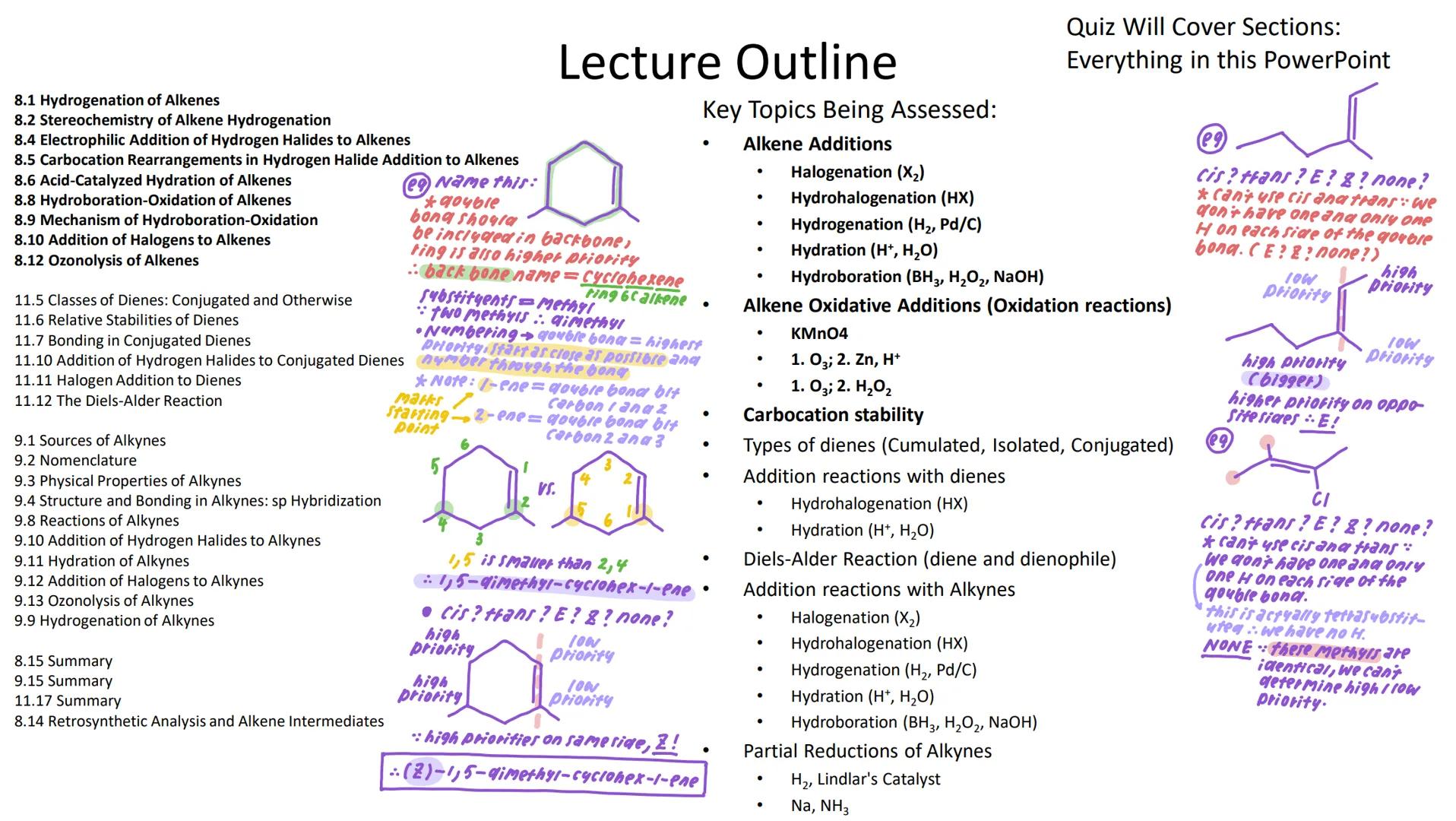

Naming Alkenes

Naming alkenes correctly requires understanding IUPAC nomenclature and prioritizing the double bond in your numbering system.

Key Steps:

1. Identify the longest chain containing the double bond as the backbone
2. Number the carbons to give the double bond the lowest possible number
3. Name substituents and indicate their positions

Example: For the molecule shown in the notes:

• Backbone: cyclohexene $6-carbon ring with double bond$
• Substituents: two methyl groups at positions 1 and 5
• Name: 1,5-dimethylcyclohex-1-ene

Stereochemistry: When indicating stereochemistry:

• Use cis/trans for disubstituted alkenes with one hydrogen on each carbon
• Use E/Z for tri- and tetra-substituted alkenes
• If the molecule has identical groups on one carbon, it doesn't show geometric isomerism

When comparing numbering options, choose the one giving the lowest numbers to substituted positions (1,5 is better than 2,4).

Remember that the double bond takes priority in numbering, and you should always start counting from the end closest to it.

Reaction Classes in Organic Chemistry

There are three fundamental reaction classes in organic chemistry that you'll need to master:

1. Addition Reactions

   • Start with molecules containing π bonds
   • End with new σ bonds and new functional groups
   • π bonds act as nucleophiles, attacking electrophiles
   • All reactions in this quiz involve π bonds as starting materials

2. Substitution Reactions

   • One functional group gets replaced by another
   • No net change in degree of saturation

3. Elimination Reactions

   • Start with two functional groups
   • Lose these groups to form a double bond (π bond)
   • Increases the degree of unsaturation

For addition reactions, the pattern is always the same: the π bond (nucleophile) attacks an electrophile (E⁺), creating new bonds. Understanding this fundamental pattern will help you predict products across many different reactions.

Key Insight: In addition reactions, always start your mechanism by showing the π bond electrons attacking the electrophile.

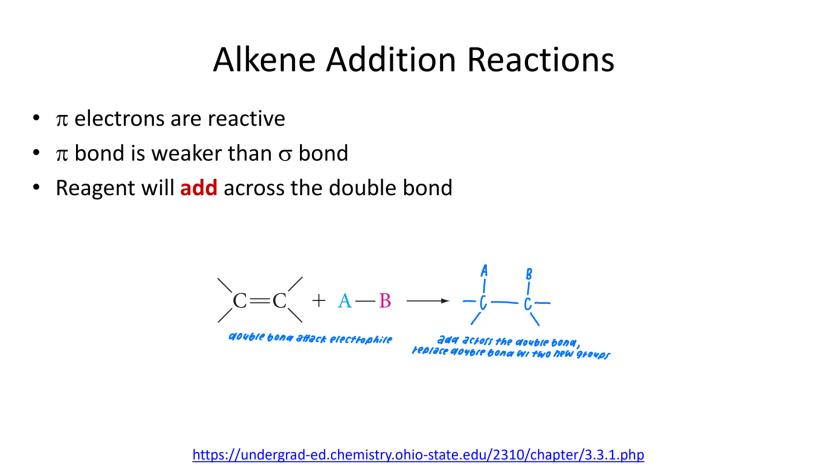

Alkene Addition Reactions Overview

Alkenes readily undergo addition reactions because:

• The π electrons are highly reactive (exposed, not between nuclei)
• The π bond is weaker than a σ bond (easier to break)
• Reagents can add across the double bond

The general pattern for an addition reaction is:

C=C + A−B → A−C−C−B

In this transformation:

1. The double bond acts as a nucleophile
2. It attacks an electrophile $A-B$
3. The double bond is replaced by two new groups
4. Two new single bonds form in place of the π bond

This pattern applies across all the addition reactions we'll study, though the specific mechanism details will vary depending on the reagent.

Addition reactions are important because they allow us to transform simple alkenes into more complex molecules with various functional groups.

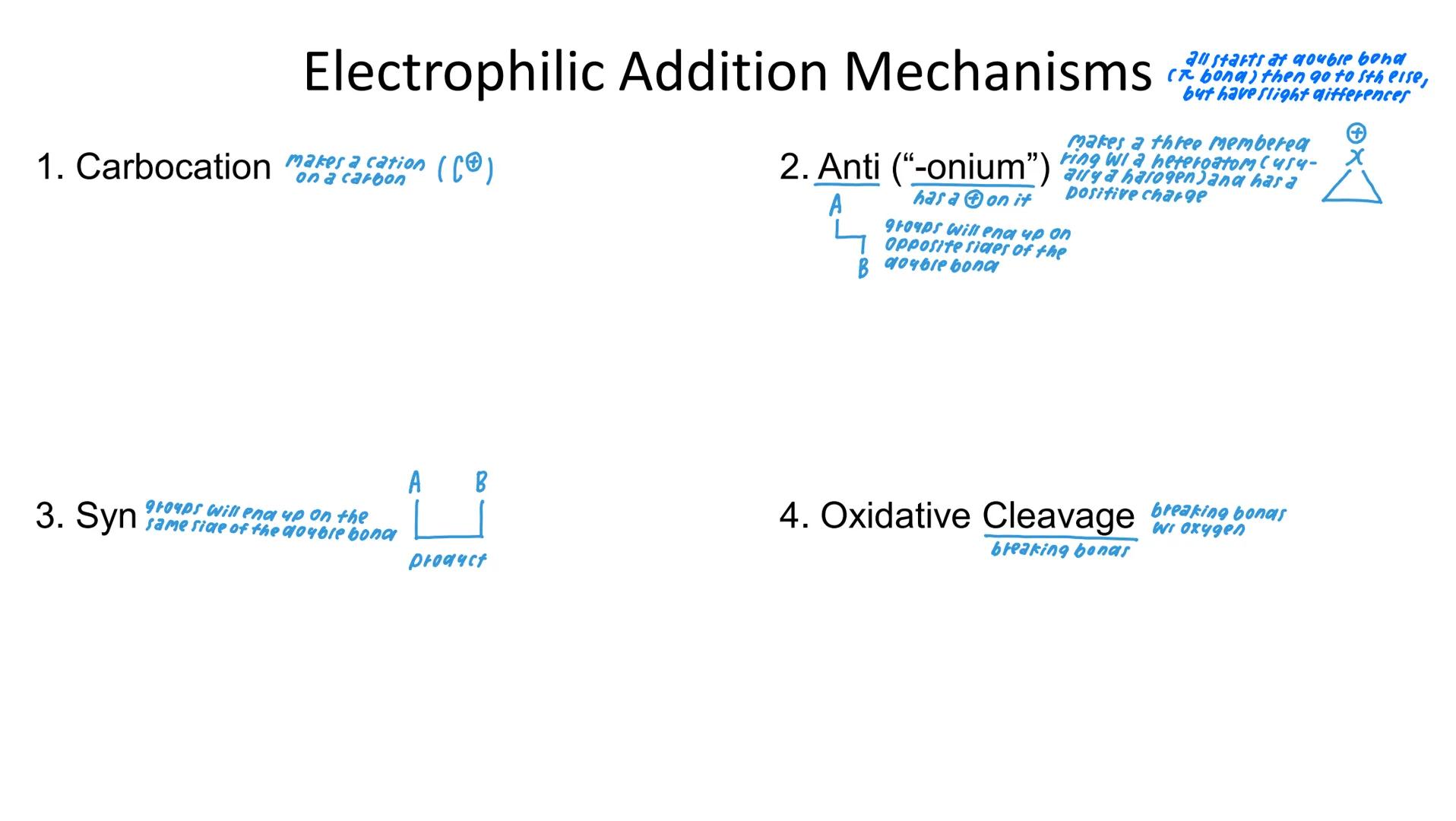

Electrophilic Addition Mechanisms

All addition reactions to alkenes start at the C=C bond, but they follow different mechanistic pathways:

1. Carbocation Mechanism

   • Creates a positive charge on carbon
   • Examples: hydrohalogenation, hydration
   • Follows Markovnikov's rule

2. Anti $"-onium"$ Mechanism

   • Forms a three-membered ring with a heteroatom (usually halogen)
   • Has a positive charge
   • Results in groups adding to opposite sides of the molecule
   • Example: halogenation with Br₂ or Cl₂

3. Syn Mechanism

   • Groups add to the same side of the double bond
   • Examples: hydrogenation, hydroboration

4. Oxidative Cleavage

   • Breaks the double bond completely
   • Incorporates oxygen atoms
   • Examples: ozonolysis, KMnO₄ oxidation

Understanding these four mechanism types will help you categorize and remember the various addition reactions of alkenes and predict their products.

Mechanism Tip: For each reaction, identify which mechanism type it follows, and you'll know whether the addition is syn, anti, or follows Markovnikov orientation.
