Rotational motion is just as important as linear motion in...
AP Physics 1242 views·Updated Jun 12, 2026·3 pagesMastering Torque in AP Physics 1
1 / 3
1
of 3

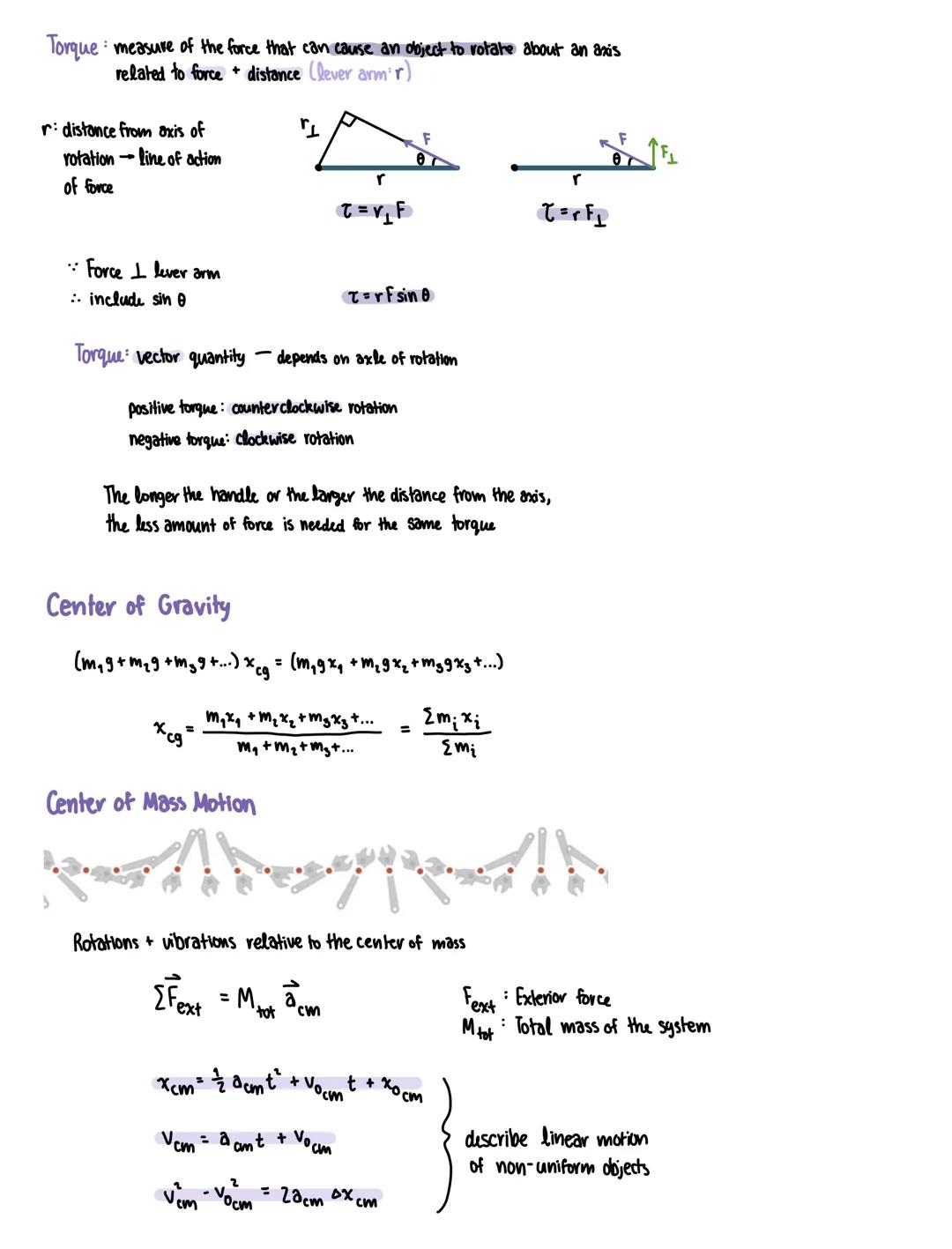

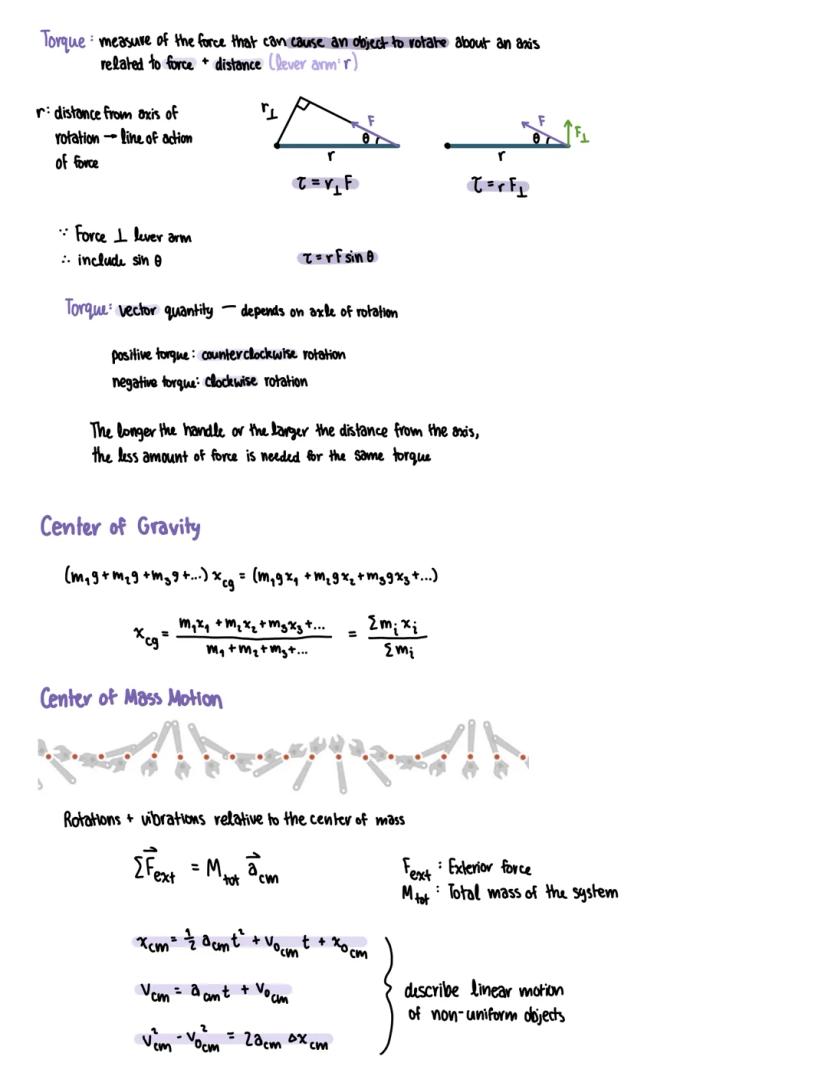

Understanding Torque and Center of Mass
Ever wonder why it's easier to open a door by pushing near the handle rather than near the hinges? That's torque in action! Torque measures how effectively a force causes rotation around an axis. It's calculated by multiplying force by the distance (lever arm) from the rotation axis: τ = rF sinθ. The longer the lever arm, the less force needed to create the same rotational effect.
Torque is a vector quantity with direction: positive torque creates counterclockwise rotation while negative torque causes clockwise rotation. This explains why pushing on different sides of a door creates opposite movements.
The center of gravity (or center of mass) is the point where an object's weight is effectively concentrated. For complex objects, we can calculate it using the formula xcg = /. This concept is crucial for understanding how objects balance and rotate.
💡 Real-world application: When you use a wrench to loosen a bolt, you're applying torque! The longer the wrench handle, the less force you need to apply to create the same turning effect.
2
of 3

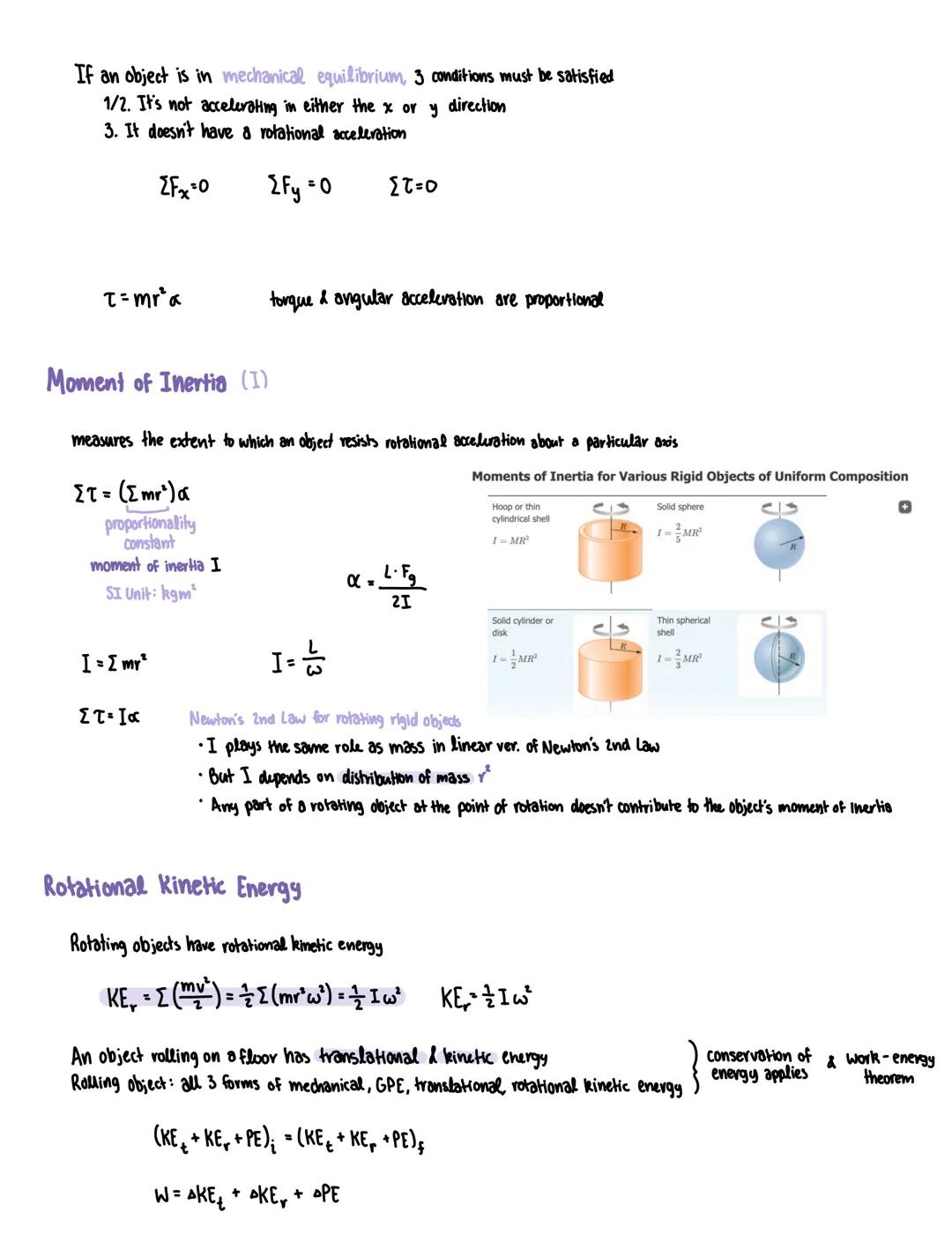

Mechanical Equilibrium and Moment of Inertia
Balancing a stack of books on your head? That's mechanical equilibrium! An object is in mechanical equilibrium when three conditions are met: no acceleration in the x-direction , no acceleration in the y-direction , and no rotational acceleration (Στ = 0).
Moment of inertia (I) measures how much an object resists rotational acceleration. Think of it as the rotational equivalent of mass. It depends on both the object's mass and how that mass is distributed away from the rotation axis: I = Σmr². The formula Στ = Iα is the rotational version of Newton's Second Law .
Rotating objects possess rotational kinetic energy, calculated as KE = ½Iω². An object rolling on the floor has both translational and rotational kinetic energy. The total mechanical energy includes potential energy too, following the principle: ᵢ = f.
🔑 Key insight: The moment of inertia explains why figure skaters spin faster when they pull in their arms! By bringing their mass closer to the axis of rotation, they reduce their moment of inertia, increasing their angular velocity.
3
of 3

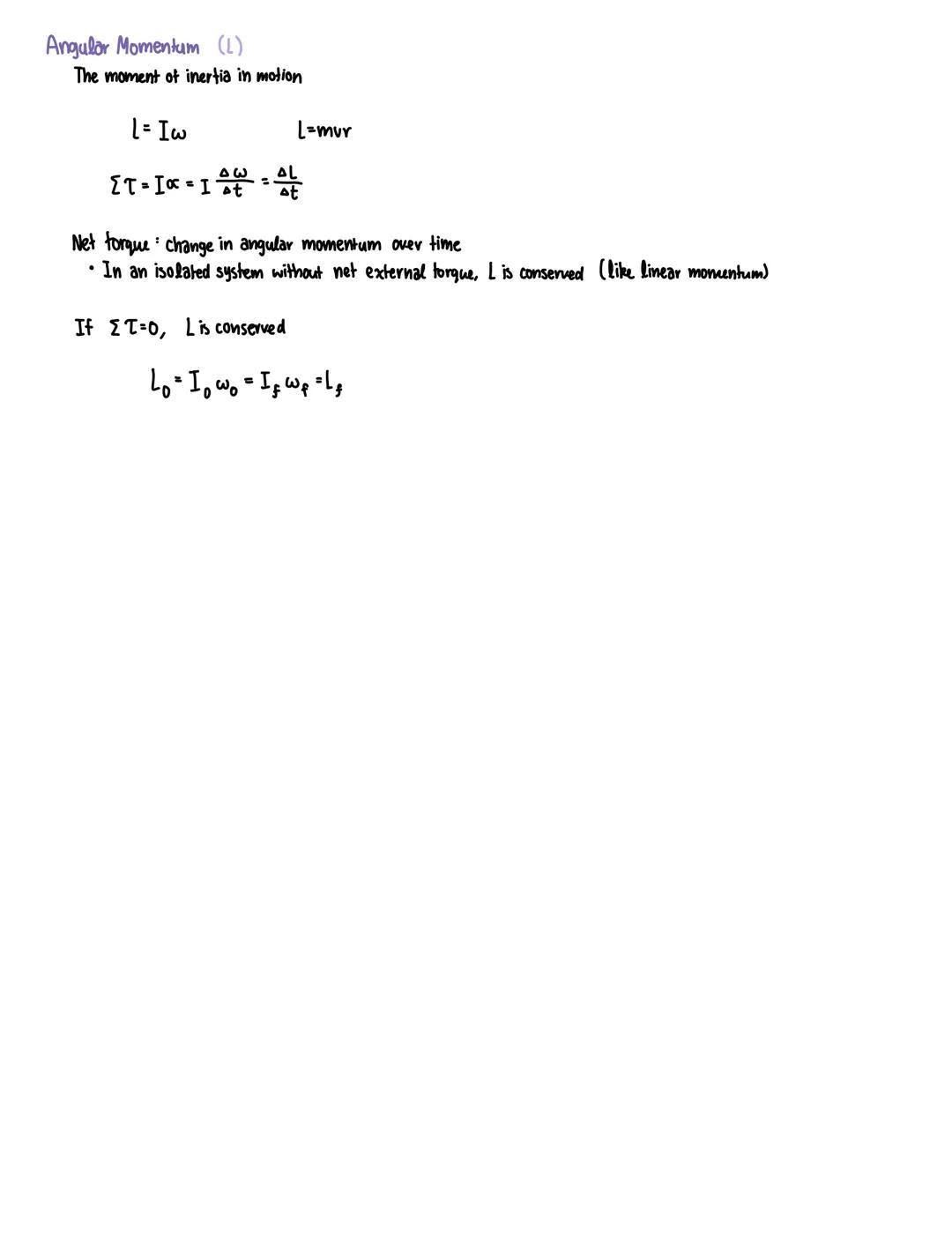

Angular Momentum
Think of angular momentum (L) as rotational momentum—it describes the "quantity of rotation" an object has. It's calculated using L = Iω or L = mvr and represents the moment of inertia in motion.
Just as force changes linear momentum, torque changes angular momentum over time: Στ = ΔL/Δt. This relationship helps us understand how rotational motion changes when torques are applied.
The most powerful principle is that angular momentum is conserved in an isolated system with no external torque (Στ = 0). This means L₁ = L₂, or I₁ω₁ = I₂ω₂. This conservation law explains many fascinating phenomena, from spinning tops to the rotation of planets.
🌟 Mind-blowing fact: Conservation of angular momentum is why cats can always land on their feet! By changing their body shape mid-fall, cats redistribute their moment of inertia while keeping their angular momentum constant.
