Lewis Structures help us visualize how atoms share electrons in...
AP Chemistry78 views·Updated Jun 17, 2026·4 pagesUnderstanding Lewis Structures: Steps and Examples
1 / 4
1
of 4

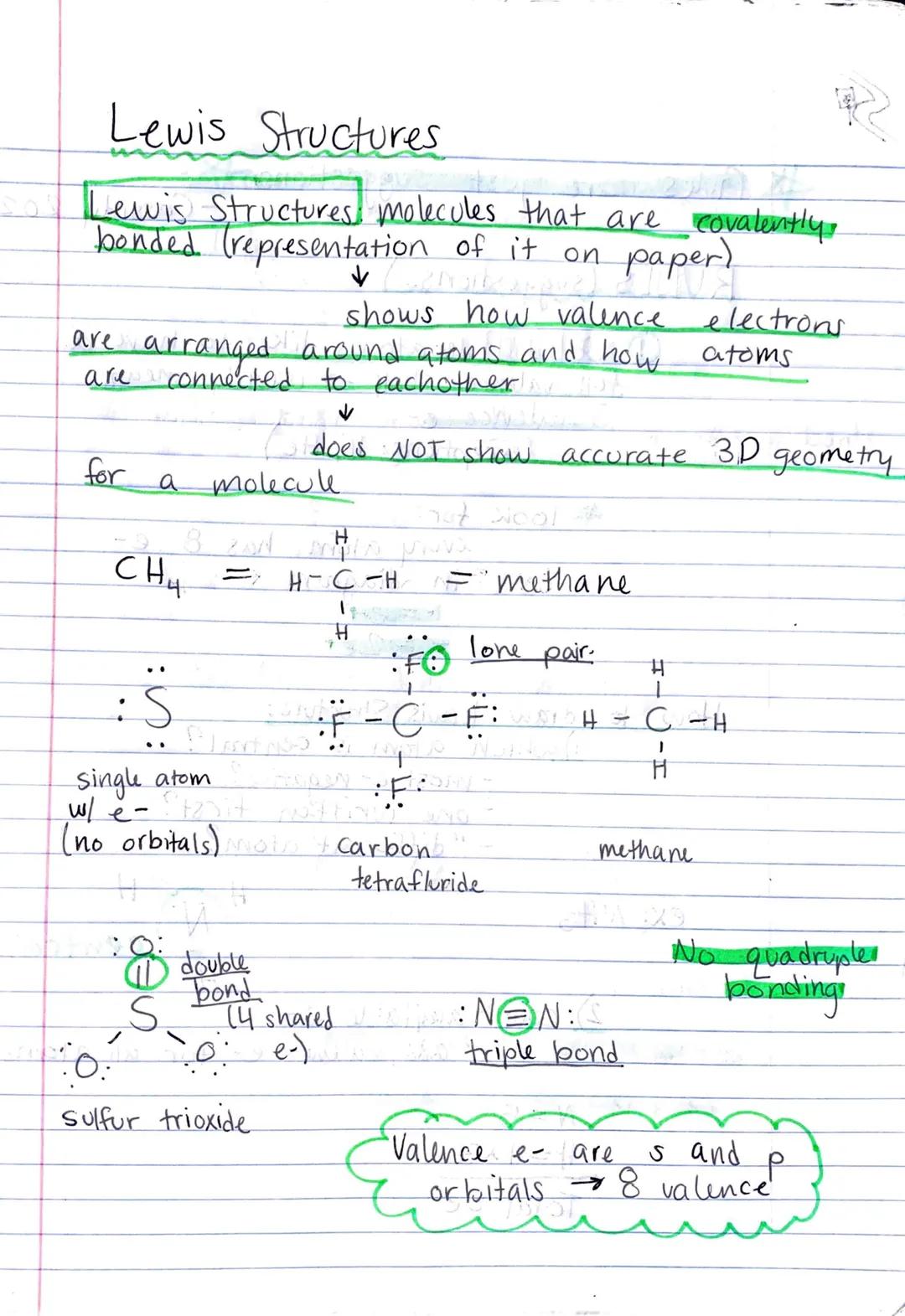

Lewis Structures: The Basics
Lewis Structures are like molecular blueprints that show how valence electrons arrange themselves around atoms in covalently bonded molecules. They reveal which electrons are being shared between atoms and which ones remain as lone pairs. Remember though - these structures don't show the actual 3D shape of molecules!
In these diagrams, we represent single bonds with one line (sharing 2 electrons), double bonds with two lines (sharing 4 electrons), and triple bonds with three lines (sharing 6 electrons). For example, methane (CH₄) shows carbon with four single bonds to hydrogen atoms, while nitrogen gas (N₂) shows a triple bond between nitrogen atoms.
When drawing atoms, we can show lone pairs (unshared electrons) as dots. Sulfur might have dots representing its lone pairs, while oxygen in a double bond would share 4 electrons with another atom while keeping some electrons to itself.
Quick Tip: Valence electrons come from the outermost s and p orbitals, which is why most atoms can have up to 8 valence electrons (octet).
2
of 4

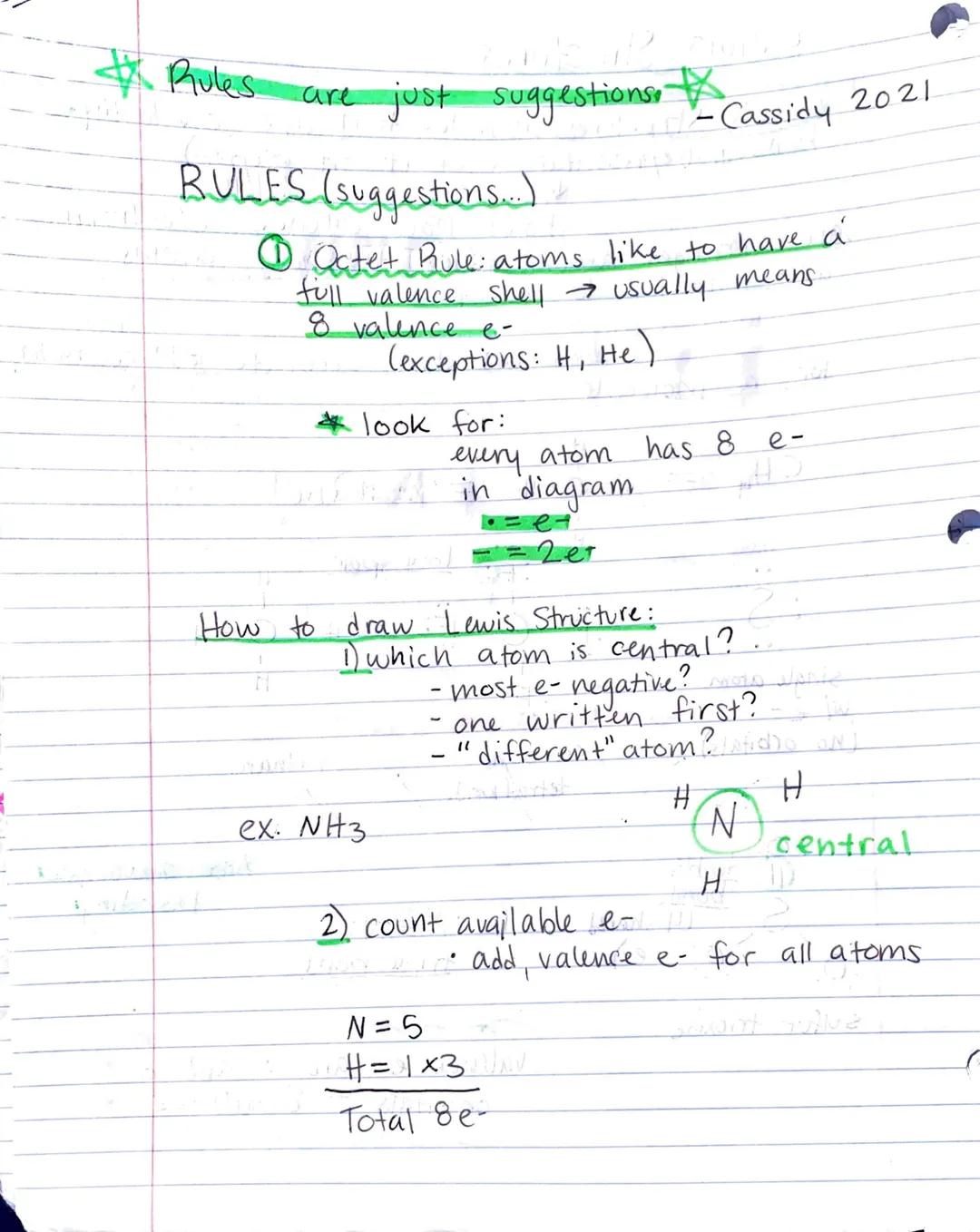

Drawing Lewis Structures: Rules and Steps
The famous Octet Rule tells us that atoms generally want 8 valence electrons to be stable (except hydrogen, which wants 2). When looking at a Lewis structure, check if each atom has access to 8 electrons either through sharing or as lone pairs.
To draw a Lewis Structure, first identify the central atom - usually it's the least electronegative atom, the one written first in the formula, or the "different" atom. For example, in NH₃, nitrogen is central while the hydrogens surround it.
Next, count the total available electrons by adding up all valence electrons from each atom. For NH₃, nitrogen contributes 5 electrons and each hydrogen contributes 1, giving a total of 8 valence electrons to work with.
Remember: The rules for Lewis Structures are more like guidelines than absolute rules. Some exceptions exist, especially for larger atoms!
3
of 4

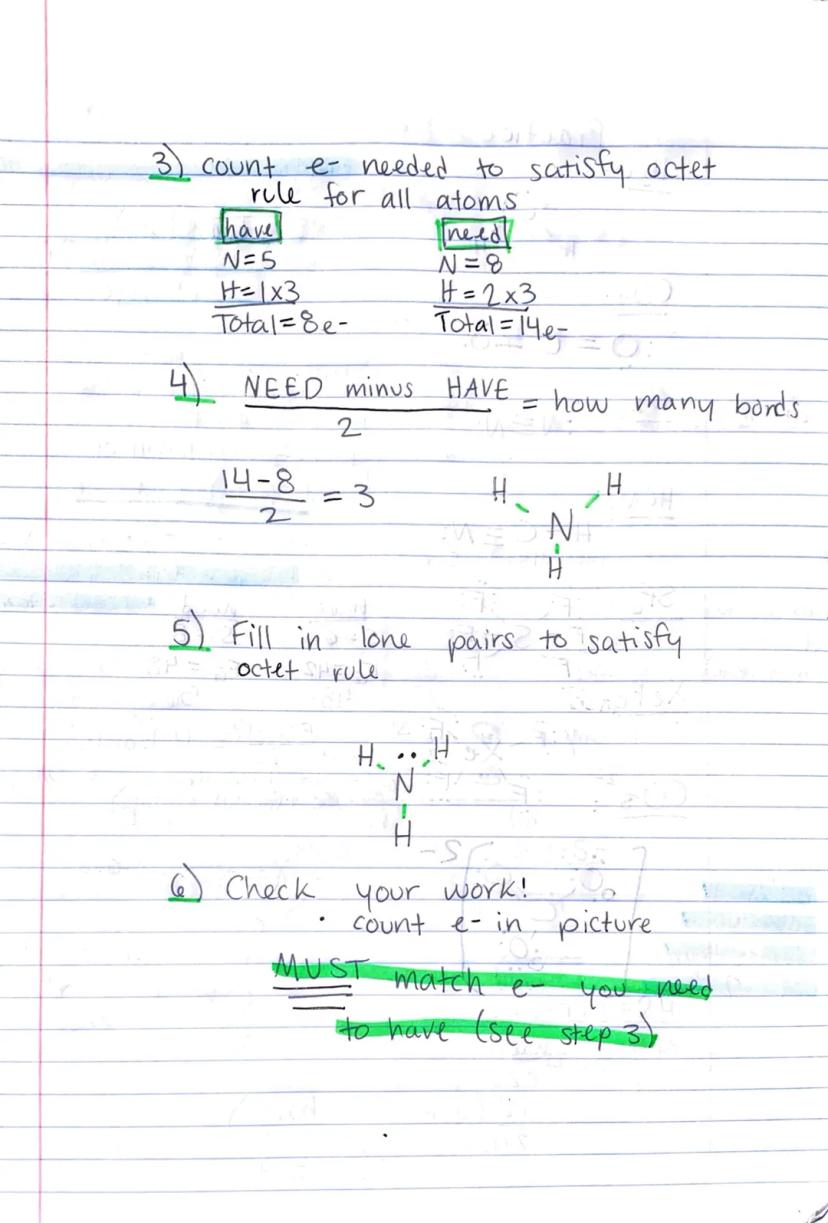

Completing Lewis Structures
After counting available electrons, determine how many electrons each atom needs for a complete octet. For NH₃, nitrogen needs 8 electrons and each hydrogen needs 2, totaling 14 electrons needed.
Calculate how many bonds to draw by subtracting available electrons from needed electrons and dividing by 2. For NH₃: (14-8)/2 = 3 bonds. Draw these bonds connecting your atoms.
Finally, add lone pairs to any atoms that still need electrons to complete their octets. In NH₃, after drawing three N-H bonds, nitrogen still needs a lone pair to reach its octet.
Pro Tip: Always double-check your work by counting electrons in your final structure - the total should match what you calculated in step 3!
4
of 4

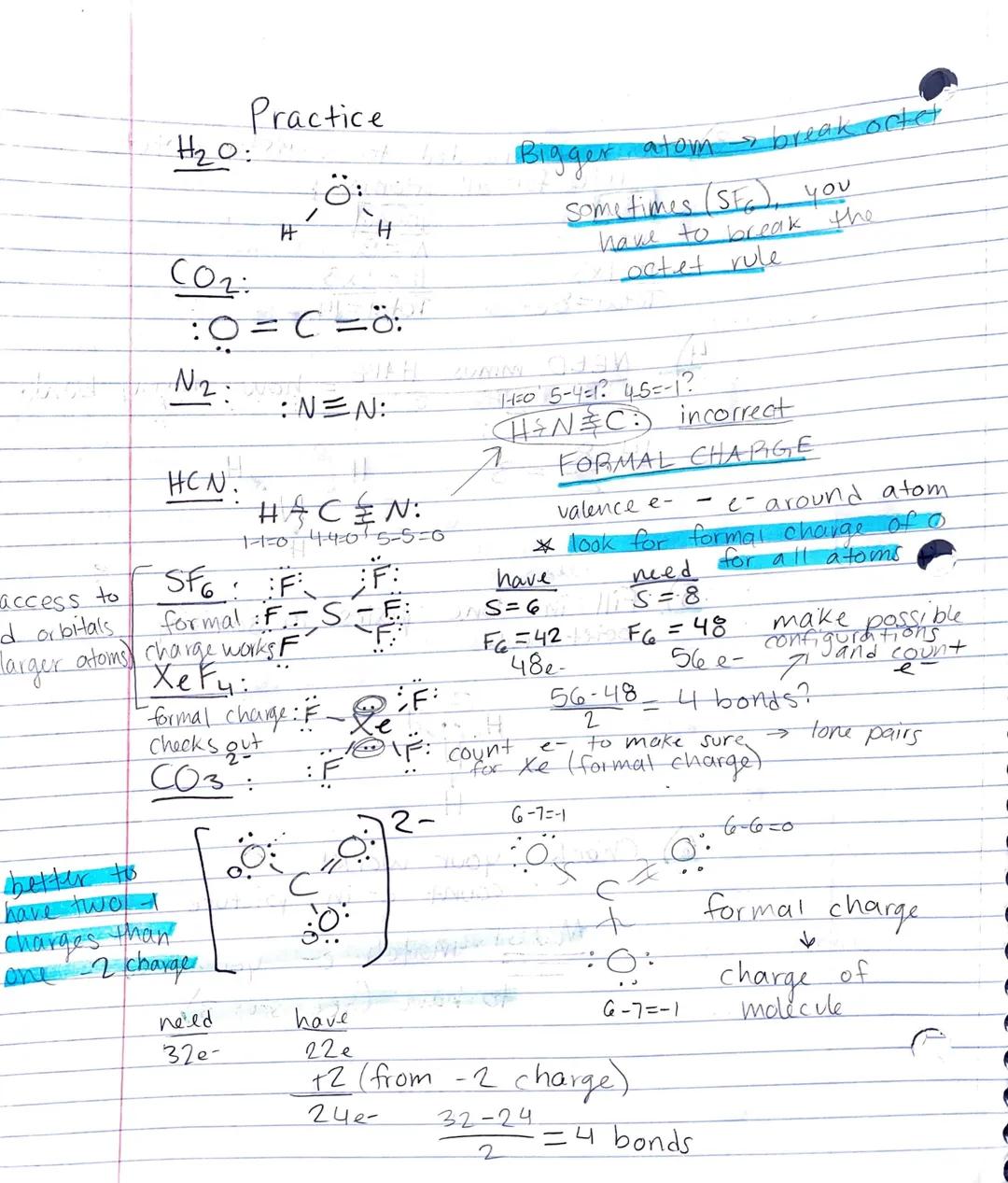

Special Cases and Formal Charge
Sometimes molecules break the octet rule, especially with larger atoms like sulfur (SF₆) or xenon (XeF₄). These atoms can access d orbitals, allowing them to accommodate more than 8 electrons.
Formal charge helps verify if your Lewis structure makes sense. Calculate it by subtracting the number of electrons "owned" by an atom from its normal valence electrons. Ideally, formal charges should be zero or as close to zero as possible.
When drawing multiple possible structures, choose the one where formal charges are minimized and distributed evenly. It's better to have two -1 charges than one -2 charge in your structure.
Important: When working with polyatomic ions like CO₃²⁻, remember to add or subtract electrons based on the overall charge of the molecule!
