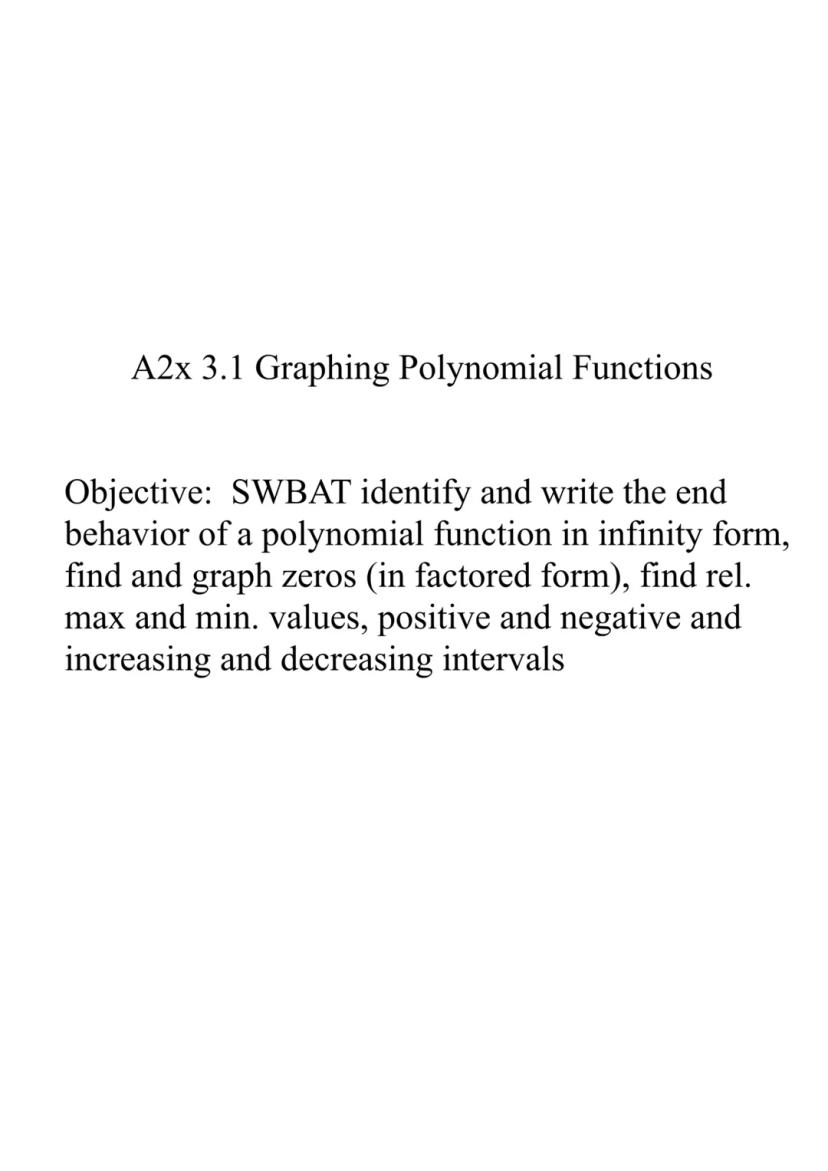

Graphing Polynomial Functions

Ever wondered how to sketch complex curves without guessing? That's what we're learning here! In this section, we'll master polynomial functions by identifying their end behavior (how the graph behaves as x gets extremely large or small).

You'll learn to find zeros $where the graph crosses the x-axis$, locate relative maximum and minimum values (the peaks and valleys), and determine where functions are positive, negative, increasing, and decreasing.

Pro Tip: Analyzing these key features lets you accurately sketch polynomial graphs without plotting dozens of points!

Classifying Polynomials

Before graphing polynomials, you need to recognize their basic structure. To classify a polynomial, first write it in standard form (arranging terms from highest to lowest power).

Then identify two key characteristics:

1. The leading coefficient $the number in front of the highest-power term$
2. The degree (the highest power of x in the function)

For example, in y = 3x² - 5x + 4x³ - 7x⁶, the standard form would be y = -7x⁶ + 4x³ + 3x² - 5x, making the leading coefficient -7 and the degree 6.

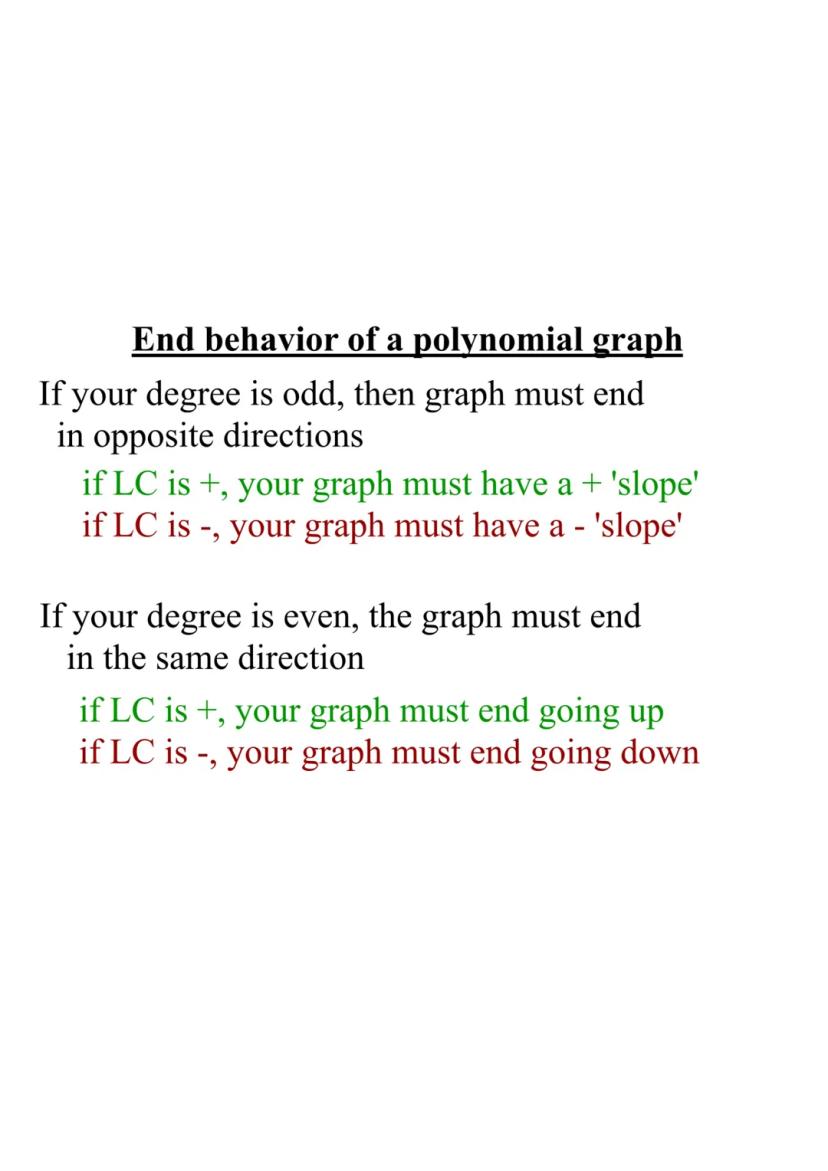

End Behavior of Polynomial Graphs

The way your polynomial graph extends toward infinity depends on just two things: its degree and leading coefficient.

For odd-degree polynomials (like x³, x⁵):

• The ends point in opposite directions
• Positive leading coefficient: rises right, falls left
• Negative leading coefficient: falls right, rises left

For even-degree polynomials (like x², x⁴):

• The ends point in the same direction
• Positive leading coefficient: both ends rise up
• Negative leading coefficient: both ends fall down

Remember: Odd-degree = opposite directions; Even-degree = same direction!

Identifying End Behavior

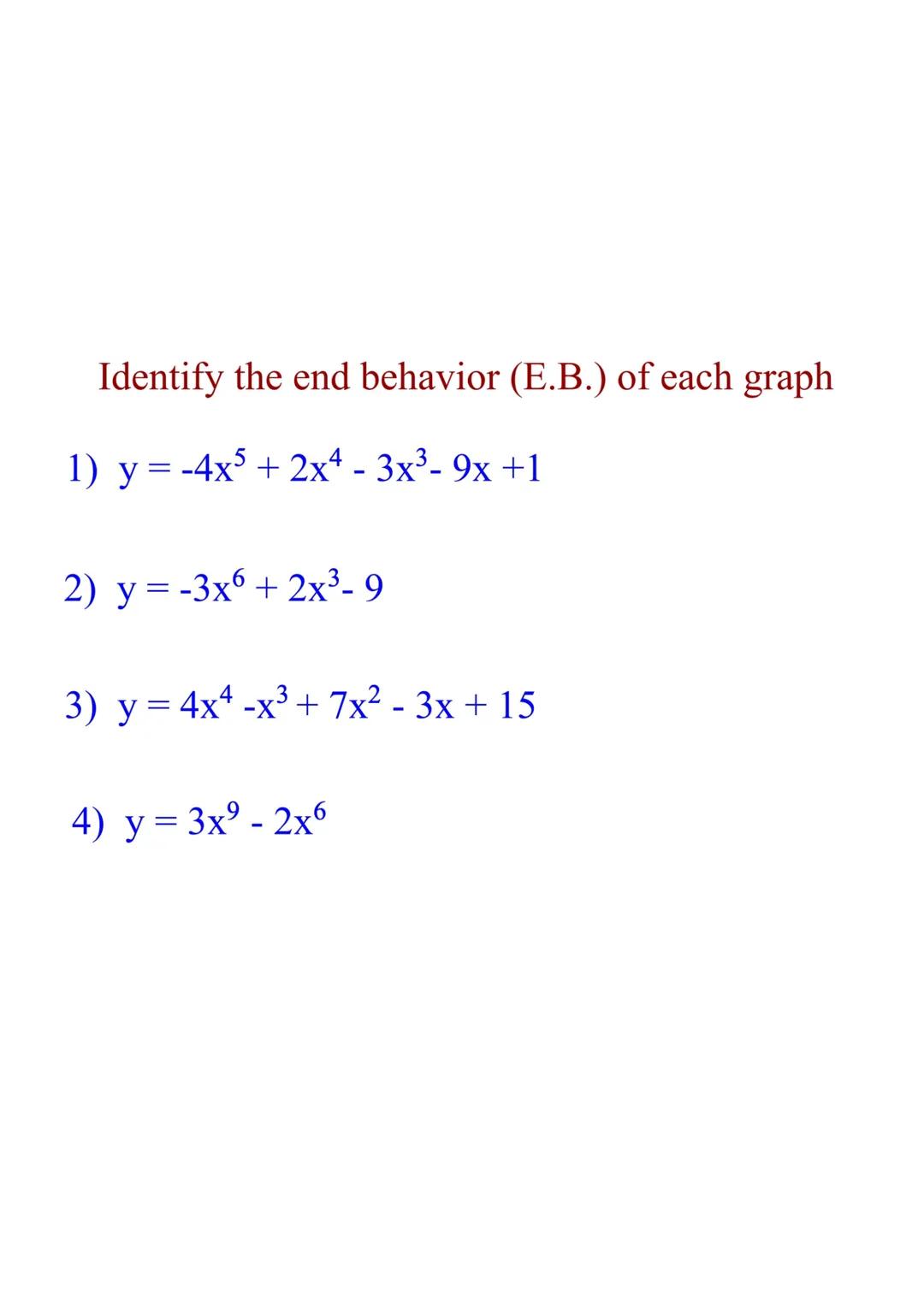

Looking at specific examples helps cement the concept. For instance, in y = -4x⁵ + 2x⁴ - 3x³ - 9x + 1, the degree is 5 (odd) and the leading coefficient is -4 (negative).

This means the graph will have ends pointing in opposite directions: as x increases, the graph will go down (because of the negative leading coefficient), and as x decreases, the graph will go up.

You can analyze end behavior without doing any calculations - just identify the degree and leading coefficient!

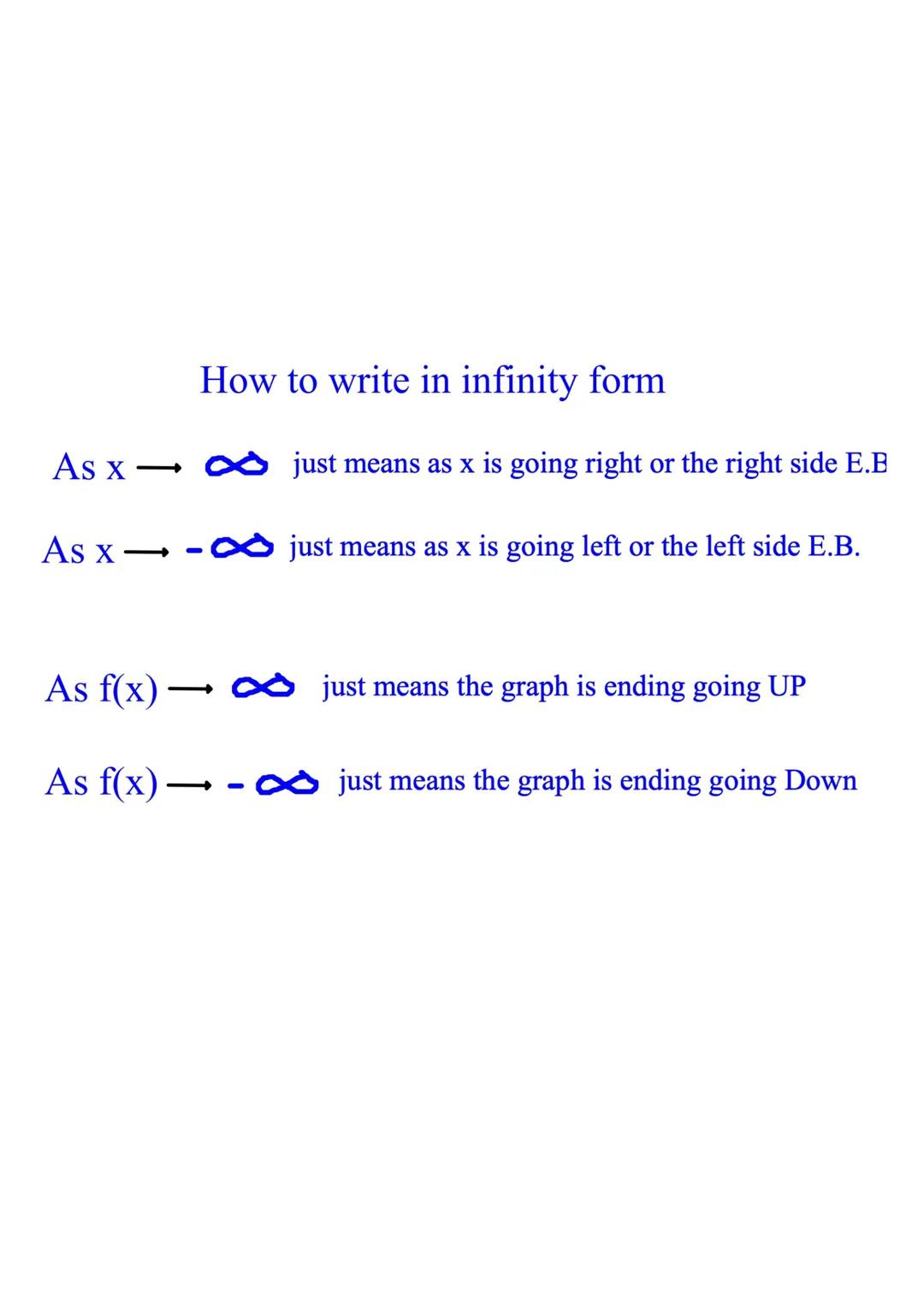

Writing End Behavior in Infinity Notation

Mathematicians have a special shorthand for describing end behavior using infinity symbols. This notation precisely describes what happens at the "ends" of the graph.

When we write "As x → ∞", we're describing what happens on the far right side of the graph. "As x → -∞" describes what happens on the far left side.

Similarly, "f(x) → ∞" means the graph is rising upward, while "f(x) → -∞" means the graph is falling downward. Mastering this notation will help you communicate about polynomial behavior clearly.

End Behavior Practice

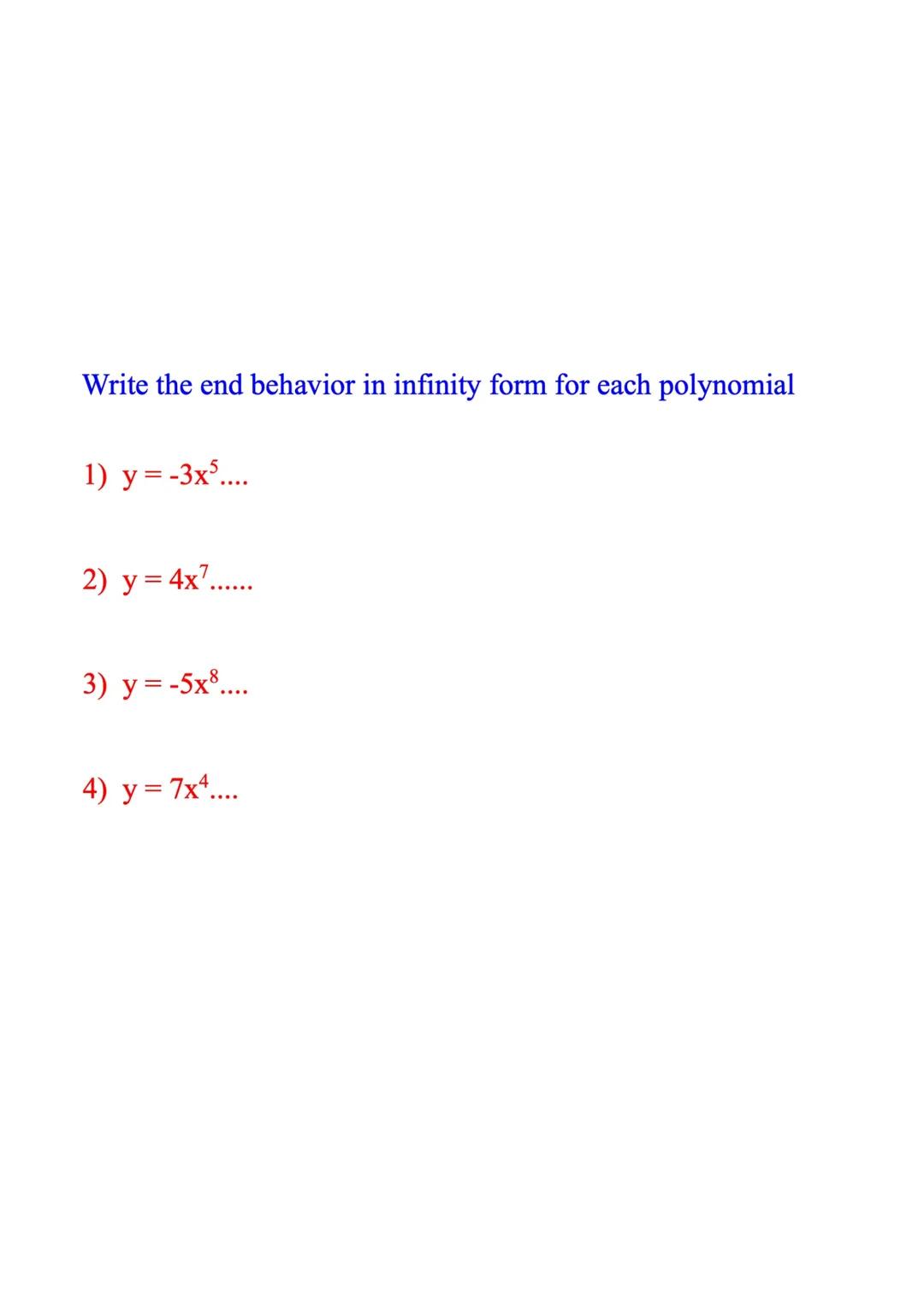

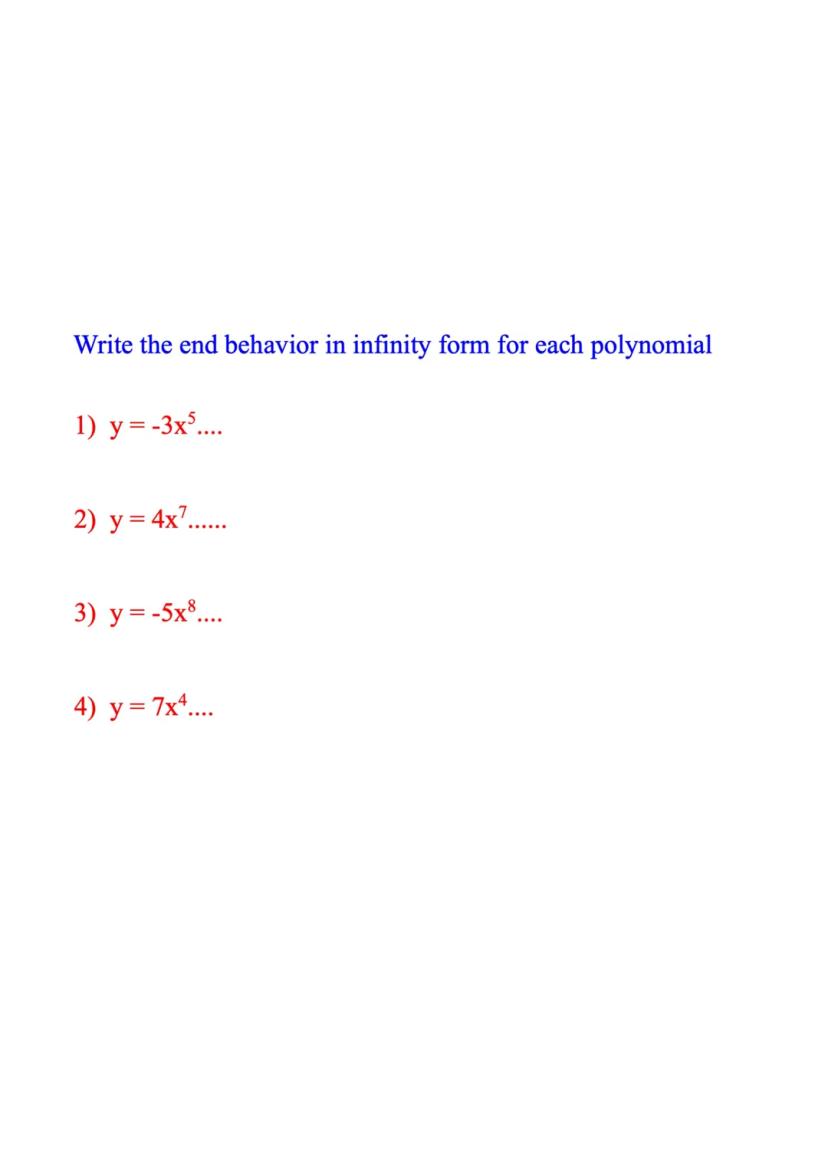

Let's practice writing end behavior in infinity notation:

For y = -3x⁵ (odd degree, negative leading coefficient):

• As x → ∞, f(x) → -∞ (right side goes down)
• As x → -∞, f(x) → ∞ (left side goes up)

For y = 4x⁷ (odd degree, positive leading coefficient):

• As x → ∞, f(x) → ∞ (right side goes up)
• As x → -∞, f(x) → -∞ (left side goes down)

Quick Check: For any polynomial, you can determine its entire end behavior just by looking at the highest-power term!

Finding Zeros of Polynomial Functions

Zeros are where the polynomial function equals zero - the x-values where the graph crosses or touches the x-axis. When a polynomial is written in factored form, finding zeros is super easy!

For each factor $x - a$, a is a zero of the function. For example, in f(x) = $x - 2$$x + 3$$x - 5$, the zeros are x = 2, x = -3, and x = 5.

If a factor includes a variable raised to a power like $x - 4$², that just means the zero $x = 4$ appears multiple times, affecting how the graph behaves at that point.

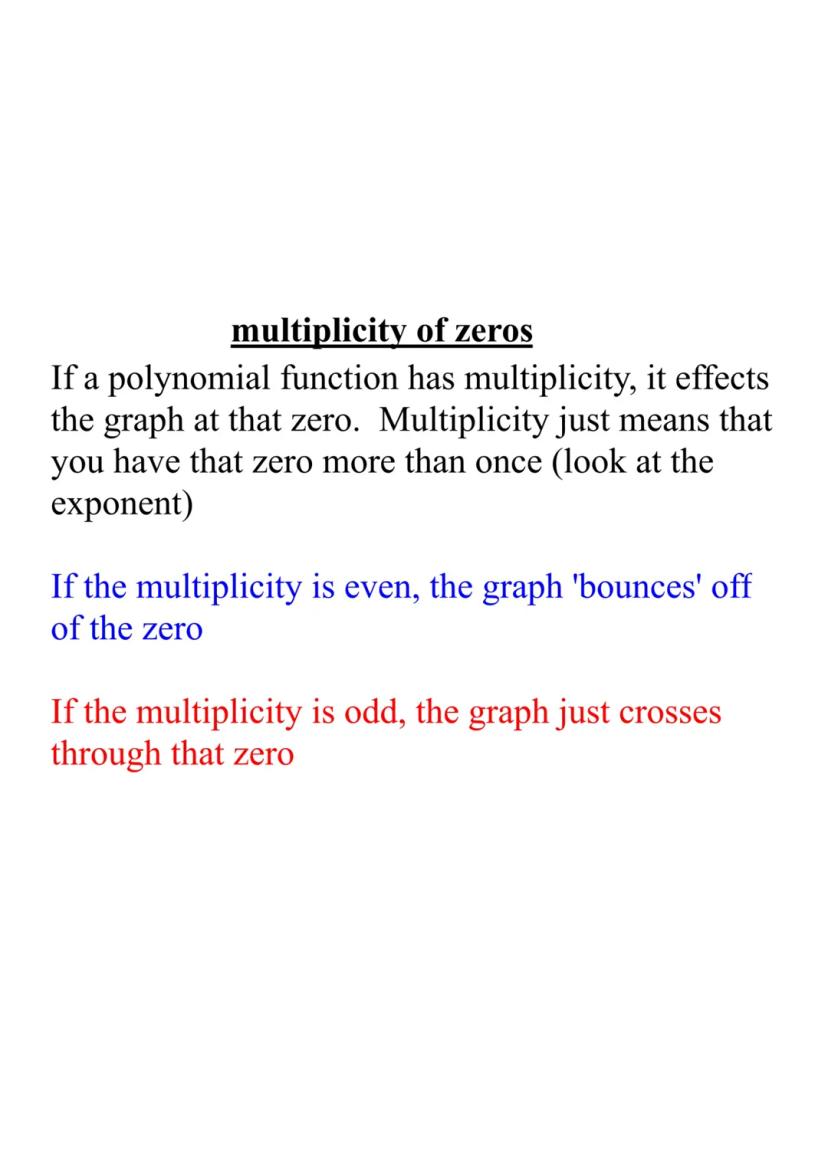

Multiplicity of Zeros

When a zero appears multiple times (has multiplicity greater than 1), it changes how the graph behaves at that point. The exponent on the factor tells you the multiplicity.

For zeros with even multiplicity $like (x-2)² or (x+4)⁴$, the graph doesn't cross the x-axis but instead touches it and bounces back in the same direction.

For zeros with odd multiplicity $like (x-3)³ or (x+1)⁵$, the graph crosses through the x-axis, just like a zero with multiplicity of 1.

Visualization Tip: Even multiplicity = bouncing off the x-axis; Odd multiplicity = passing through the x-axis

Graphing Polynomials: Example 1

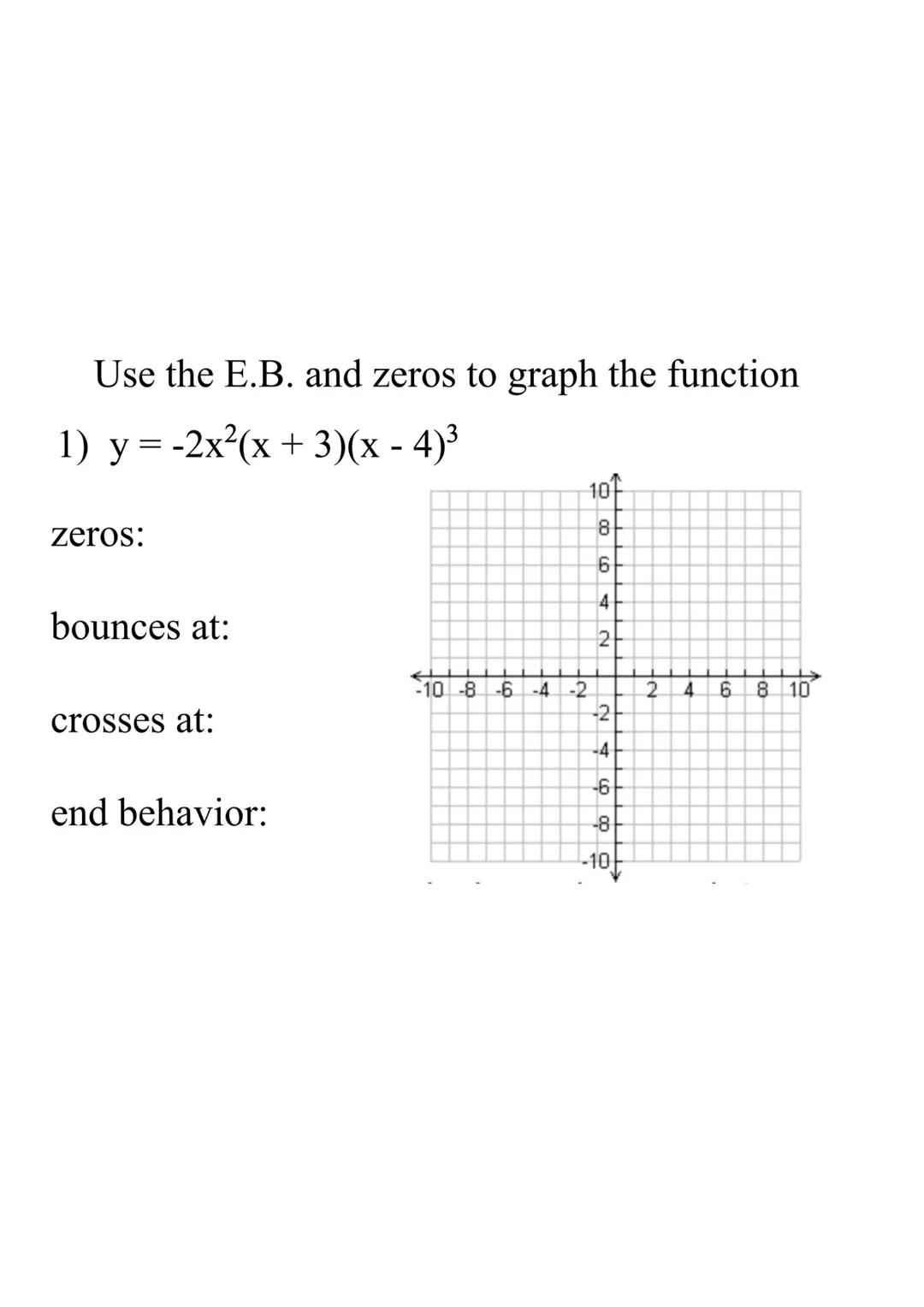

Let's graph y = -2x²$x + 3$$x - 4$³ step by step:

First, identify the zeros:

• x = 0 (from x²)
• x = -3 $from x + 3$
• x = 4 $from (x - 4)³$

Then determine which zeros have the graph bouncing vs. crossing:

• x = 0 bounces (even multiplicity: 2)
• x = -3 crosses (multiplicity: 1)
• x = 4 crosses (odd multiplicity: 3)

Finally, use the end behavior (negative leading coefficient, odd overall degree) to determine that the graph falls to the right and rises to the left.

Graphing Polynomials: Example 2

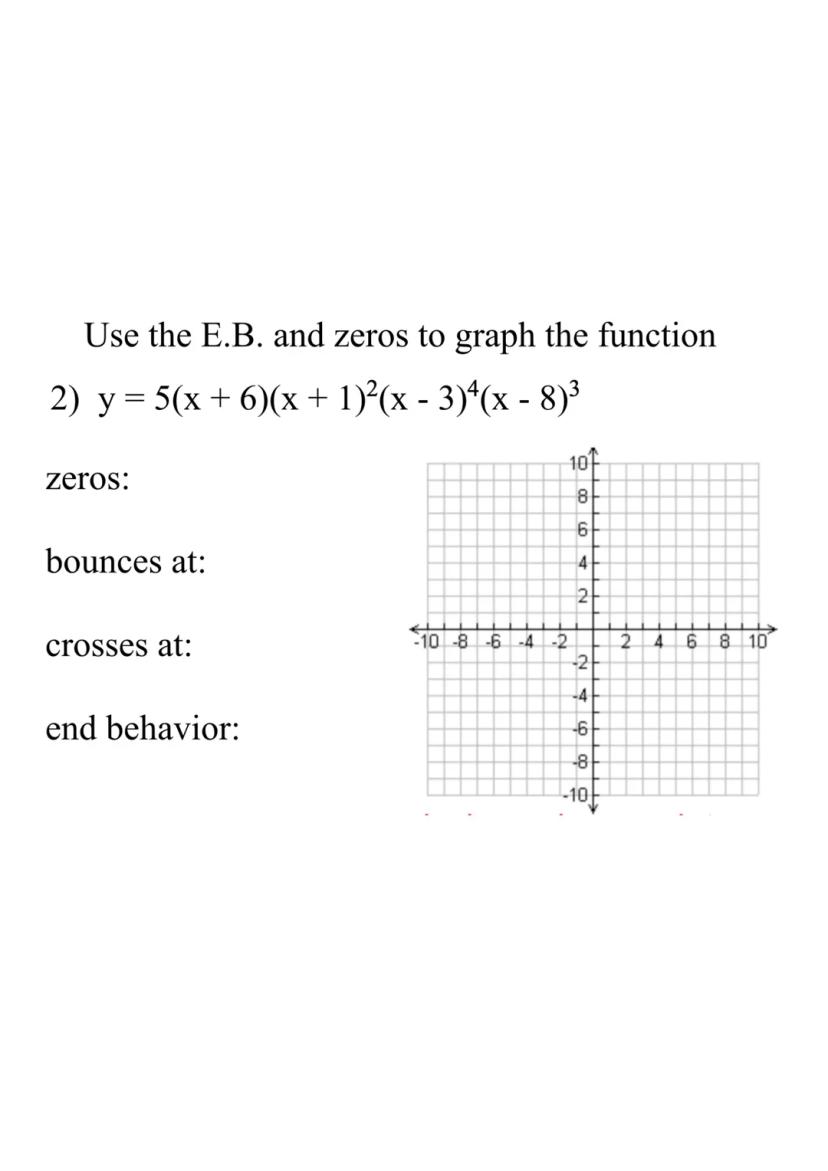

For y = 5$x + 6$$x + 1$²$x - 3$⁴$x - 8$³, we follow the same approach:

First identify the zeros:

• x = -6 $from x + 6$
• x = -1 $from (x + 1)²$
• x = 3 $from (x - 3)⁴$
• x = 8 $from (x - 8)³$

Then determine behavior at each zero:

• x = -6 crosses (multiplicity: 1)
• x = -1 bounces (even multiplicity: 2)
• x = 3 bounces (even multiplicity: 4)
• x = 8 crosses (odd multiplicity: 3)

The end behavior depends on the degree (10, even) and positive leading coefficient, so both ends rise upward.
